Laminated glass
Laminated glass is used in both glazed units and single glazing. Thanks to the applications of various types of interlayers and glass, laminated glass can perform many functions: security, anti-burglary, structural, visual or acoustic protection. They also protect against UV radiation.
Wide range of applications
Laminated glass consists of two or more panes of glass - annealed, toughened or heat strengthened - joined by an appropriate number of layers of PVB or SVG foils - used not only in the facades, as a component of window or door assemblies, but also as single glass, used in the creation of interior glazing, glass barriers or stairs. The variety of applications of laminated glass is due to the possibility of shaping its function with the selection of the appropriate interlayer.
Laminated glass panes are made in all the combinations that production capabilities allow. Laminated safety glass are those of all possible combinations that meet the requirements of one of the classes specified in the European standard PN-EN 12600. Correspondingly, laminated safety glass are constructions that meet the requirements of the European standard PN-EN 356.
Benefits and applications
of laminated glass
Benefits
- Minimizing the risk of injury in case of glass breakage
- Increased sound insulation
- Temporary firewall against burglary
- Reduced penetration of UV radiation
Examples of applications
- Glazed units in windows
- Glazed units in facades
- Glass staircases

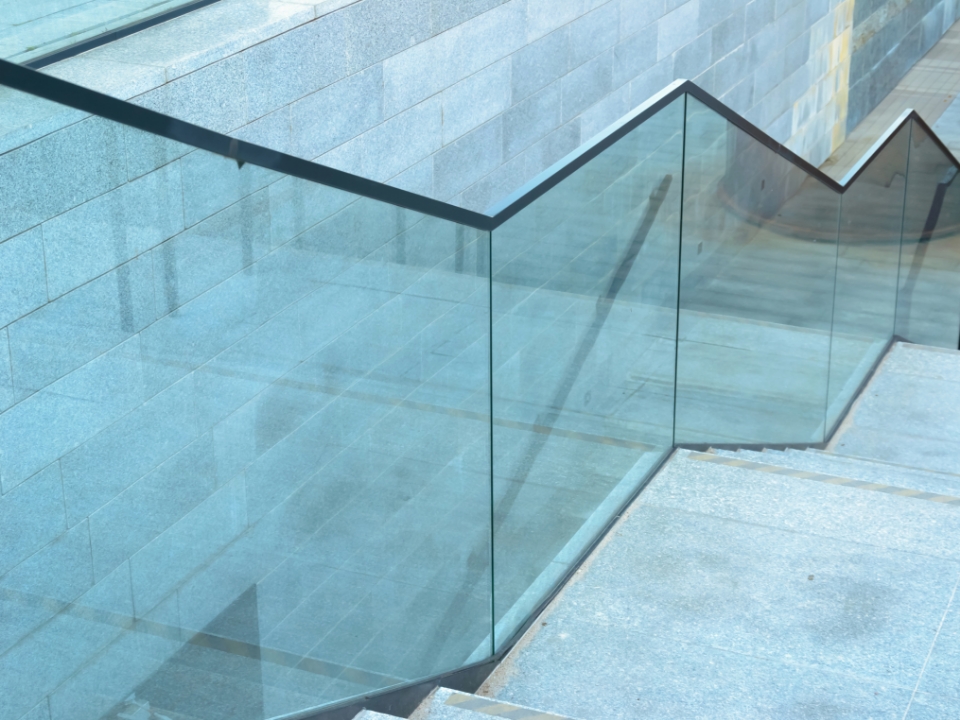

- Glass barrier fillings
- Partition walls and other interior glazing
Specifications
| Max. packet thickness [mm] | 100 | |||||
| Max. dimension [mm] | 3200 x 7000 | |||||
| Min. dimension [mm] | 250 x 500 | |||||
|
Max. weight [kg] – of packet – component panes |
–
1000 500 |
|||||
- colourless and coloured in mass
- with solar control, low emission and selective coatings
- selected ornamental glass
- colourless
- matt
- acoustic
- colorful (Vanceva)
- structural (SGP)
- bird-friendly
- hurricane (SentryGlas)
According to the relevant standard classification, laminates obtain the corresponding safety class:
- EN 12600 standard – safety against injury during accidental breakage (1B1, 2B2, 3B3)
- PN-EN 356 standard – impact protection (P1A – P5A and P6B – P8B).
|
Two-layered laminated pane construction |
|||
| Min. glass thickness from the side of action of given destructive factor | Minimal quantity of foil layers expressed in foil of thickness 0.38mm | Min. glass thickness from the side free of action of given destructive factor | Class EN 12600 |
| 3 | 1 | 3 | 2B2 |
| 3 | 2 | 3 | 1B1 |
| Two-layered laminated pane construction | |||||
| Nominal thickness [mm] | Min. glass thickness from the side of action of given destructive factor | Min. quantity of foil layers expressed in foil of thickness 0.38mm | Min. glass thickness from the side free of action of given destructive factor | Min. quantity of glass panes | Class PN-EN 356* |
| – | 3 | 2 | 3 | – | P1A lub P2A |
| – | 4 | 2 | 4 | – | P2A |
| – | 4 | 4 | 4 | – | P4A |
| – | 4 | 6 | 4 | – | P5A |
| 11,04 | 4 | 8 | 4 | – | P6B |
| Multi-layered laminated pane construction | |||||
| 23,04 | 4 | 2 | 4 | 5 | P7B |
| 27,80 | 4 | 2 | 4 | 6 | P8B |
*in order to verify the EN 356 safety class for the selected design, please contact your sales representative.
| Structure [mm]. | Acoustic insulation indicator and adaptive indicators [dB] |
|||
| Rw | Ctr | C | ||
| 6 | 31 | -3 | -2 | |
| 6.4 (VSG 33.1) | 32 | -3 | -1 | |
| 8 | 32 | -3 | -2 | |
| 9.5 (VSG 44.4) | 34 | -3 | -1 | |
