Glazed units with window dividers

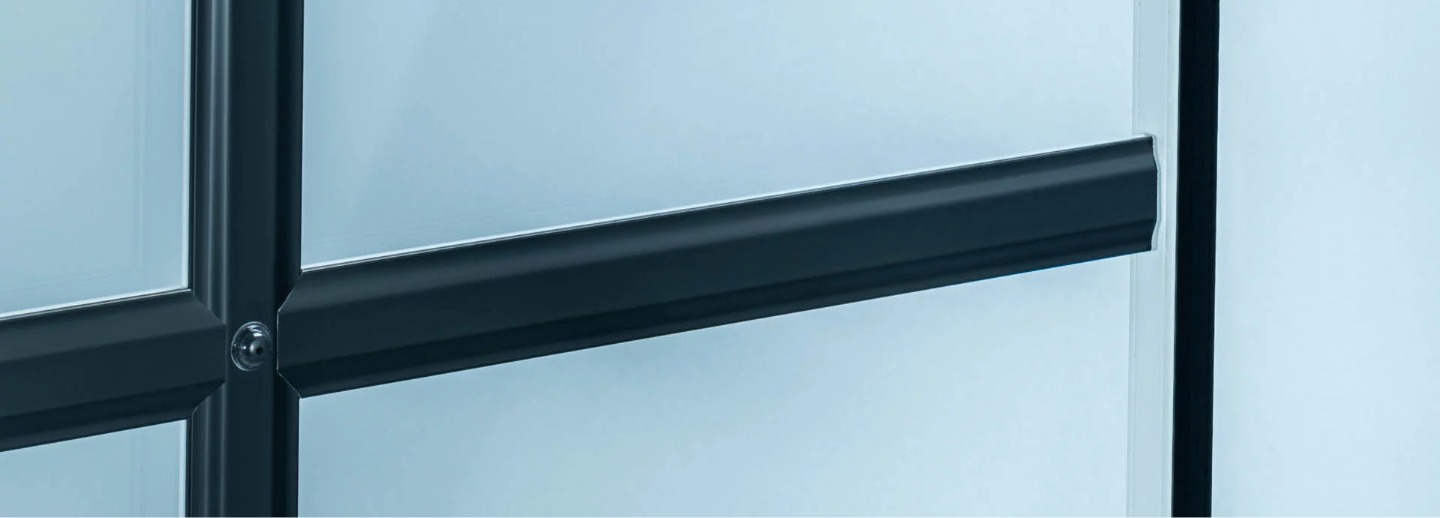

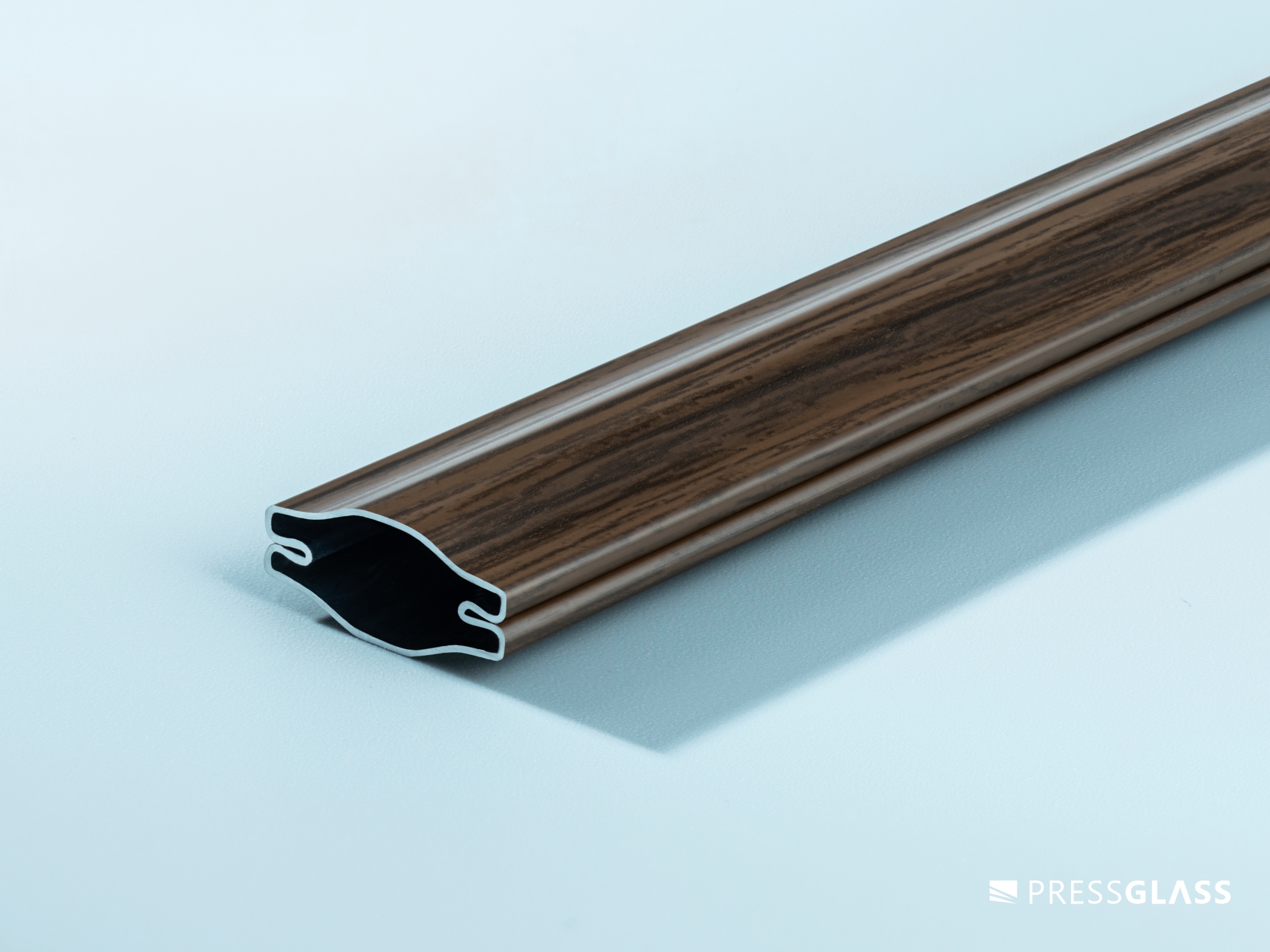

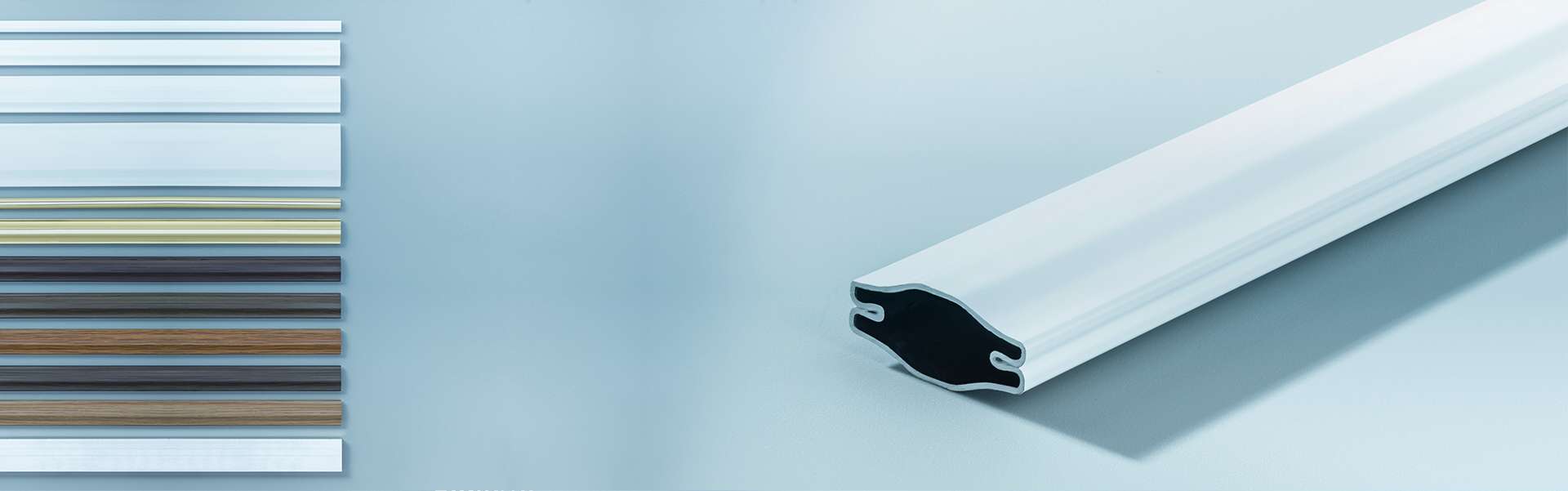

Window dividers are an attractive creative tool - both for those who love tradition and those who prefer new techniques of shaping architecture. Window dividers offered by PRESS GLASS are available in a wide range of colors. The offer includes window dividers of various widths. The elements can be curved into arches or circles and joined at different angles.
Gallery of window dividers
See the gallery of sample window dividers and selected configurations of window dividers in combinations. Please note that due to continuous development, our product range may vary from market to market. Product availability should always be confirmed with the Sales Department.
Gallery

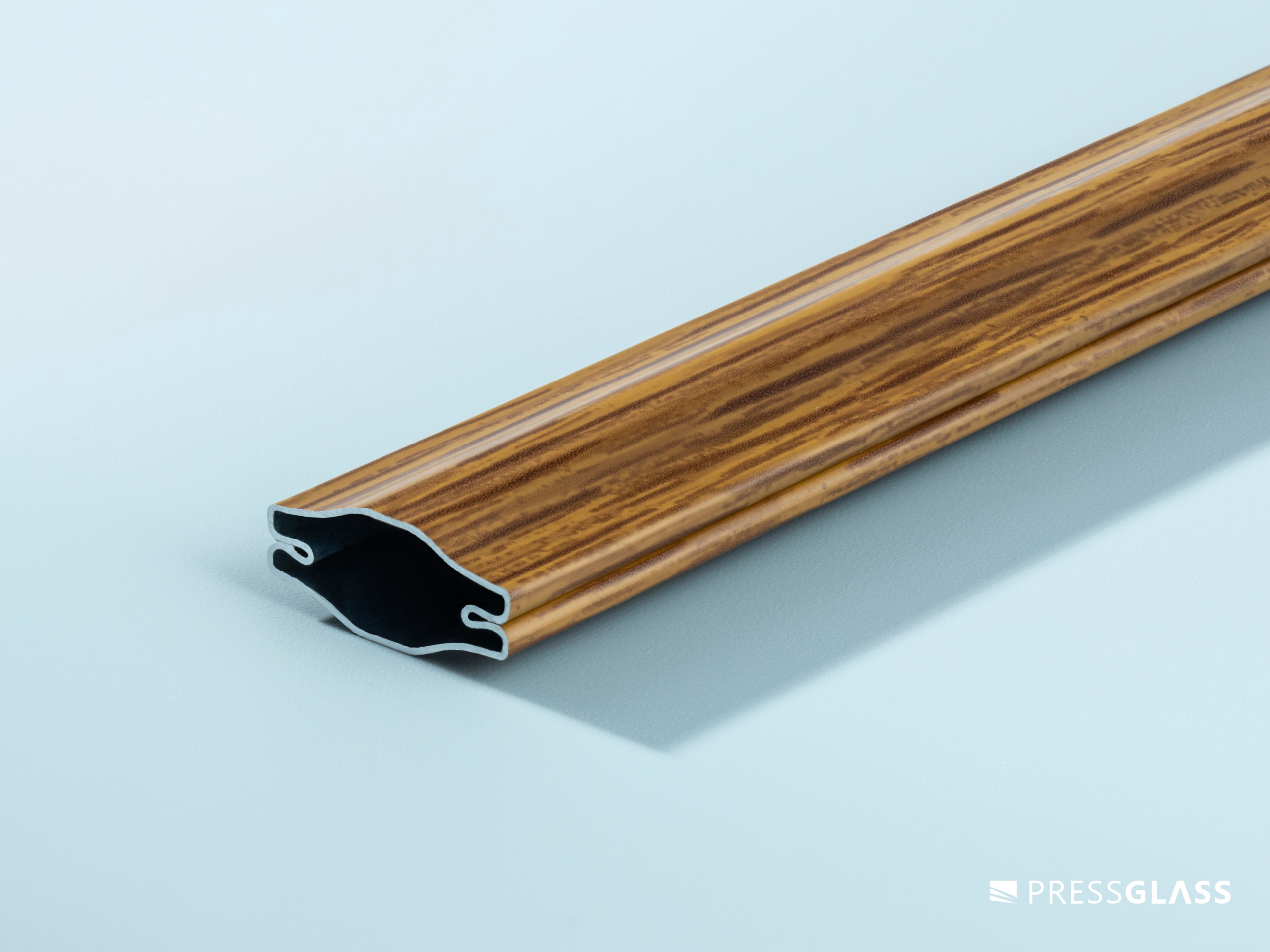

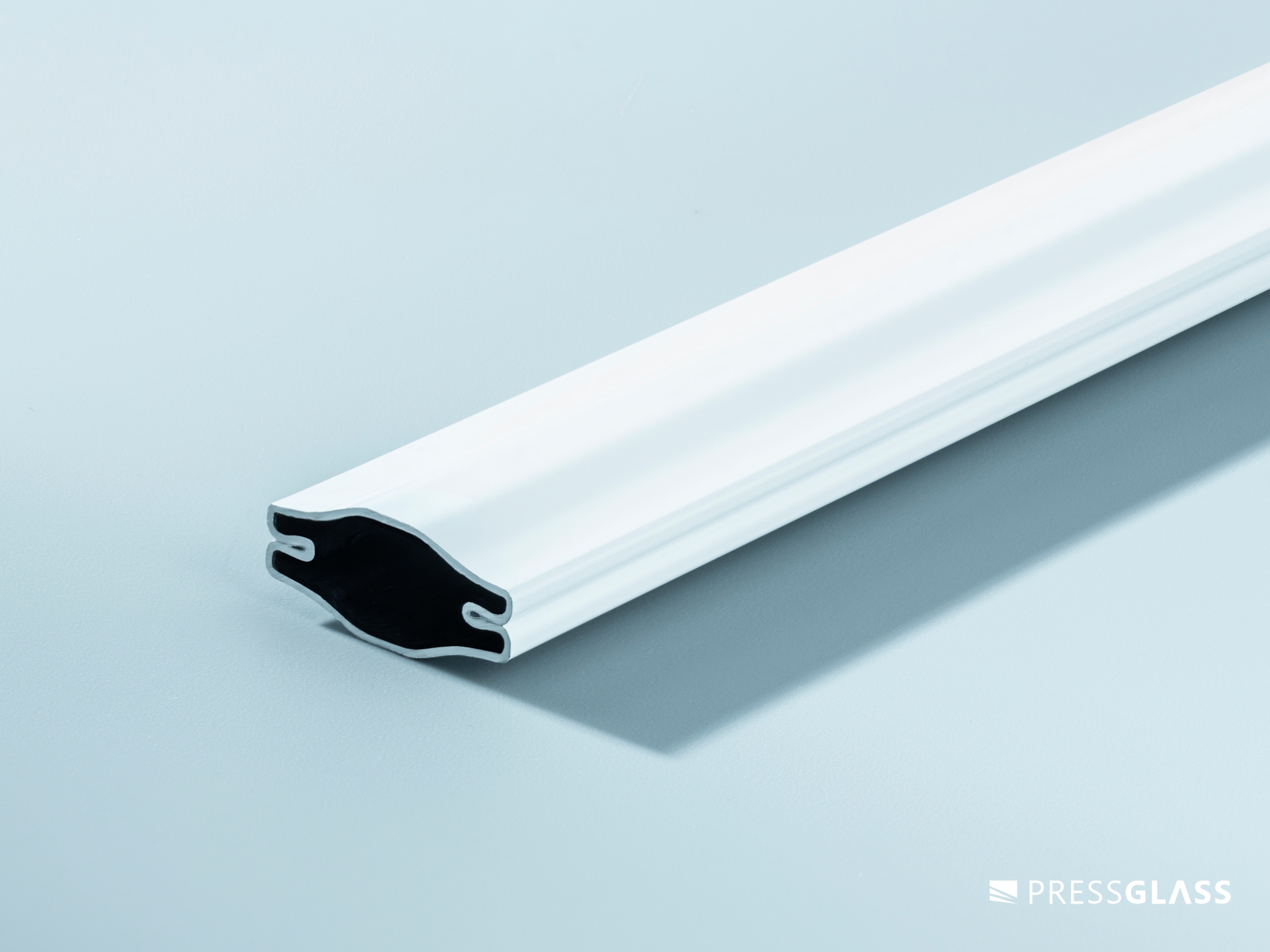

of example window dividers

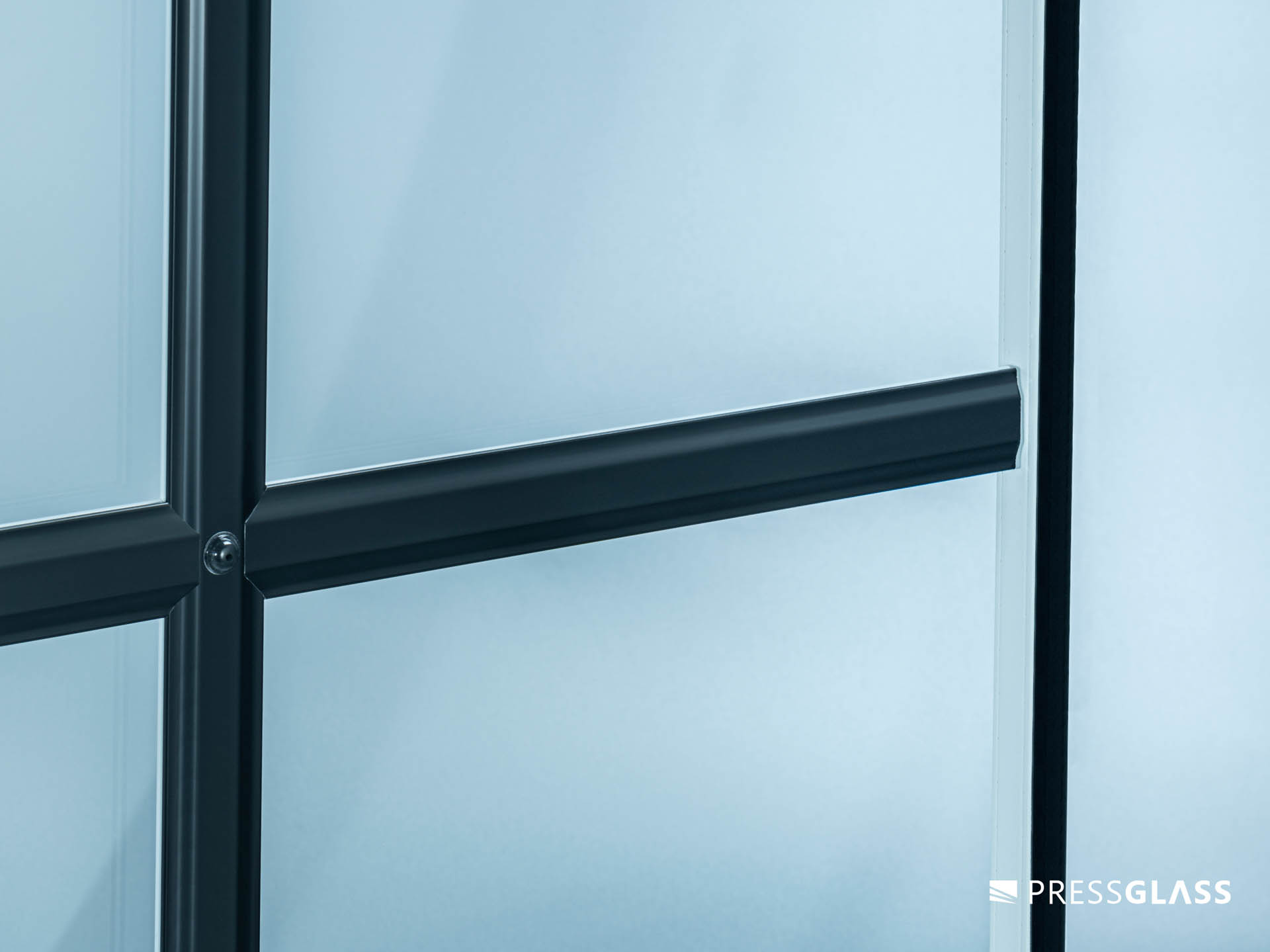

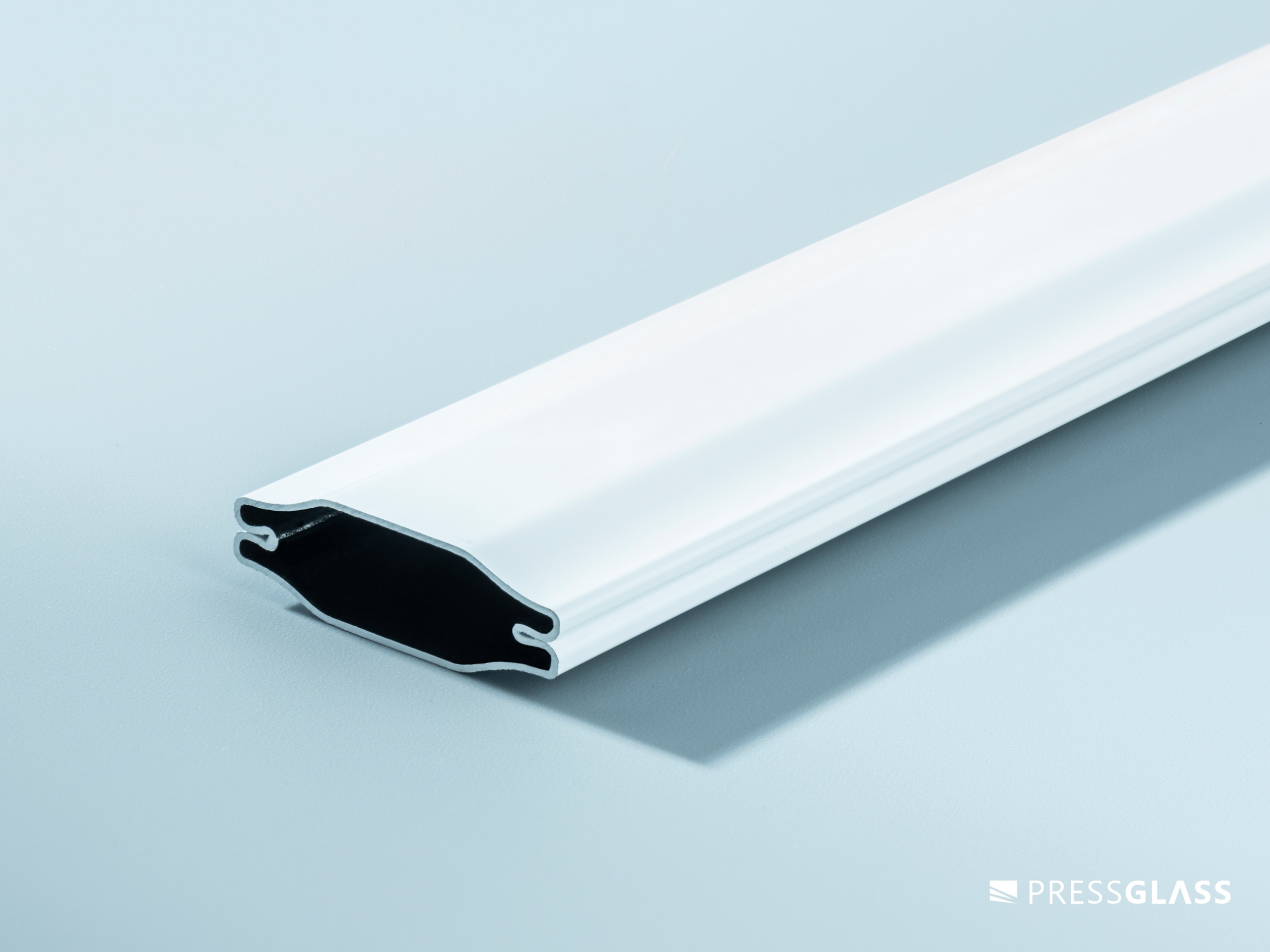

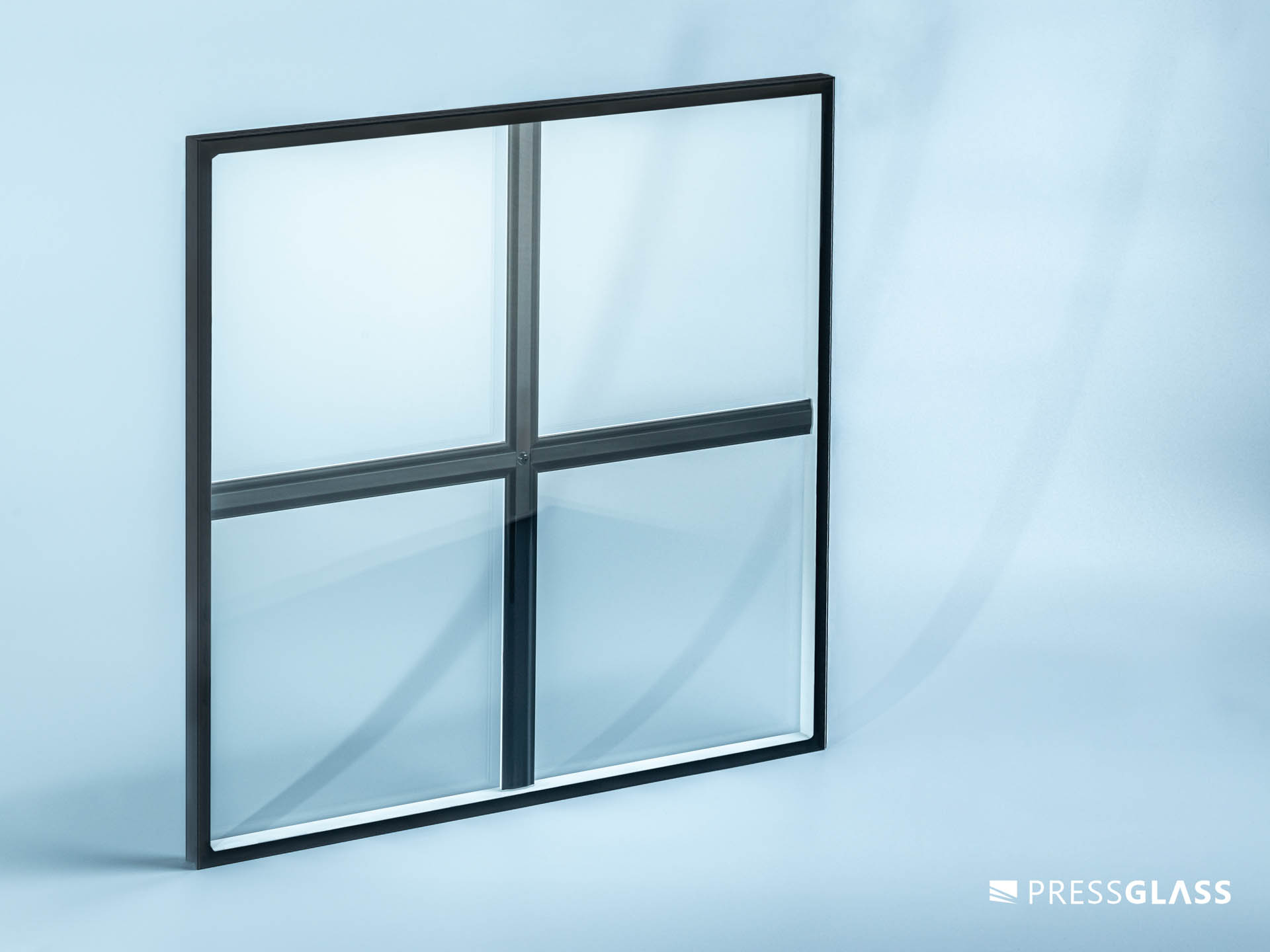

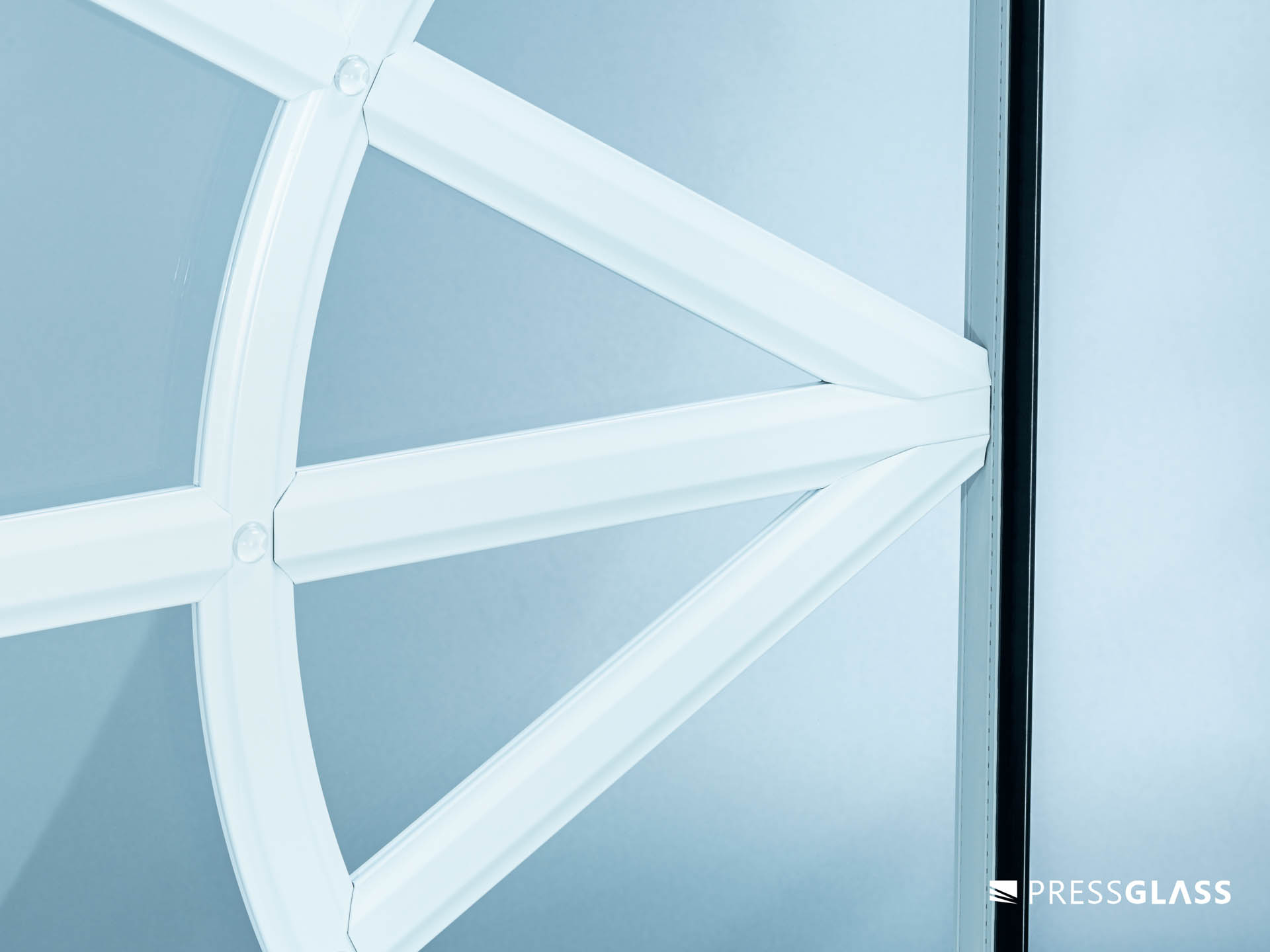

Gallery of window dividers

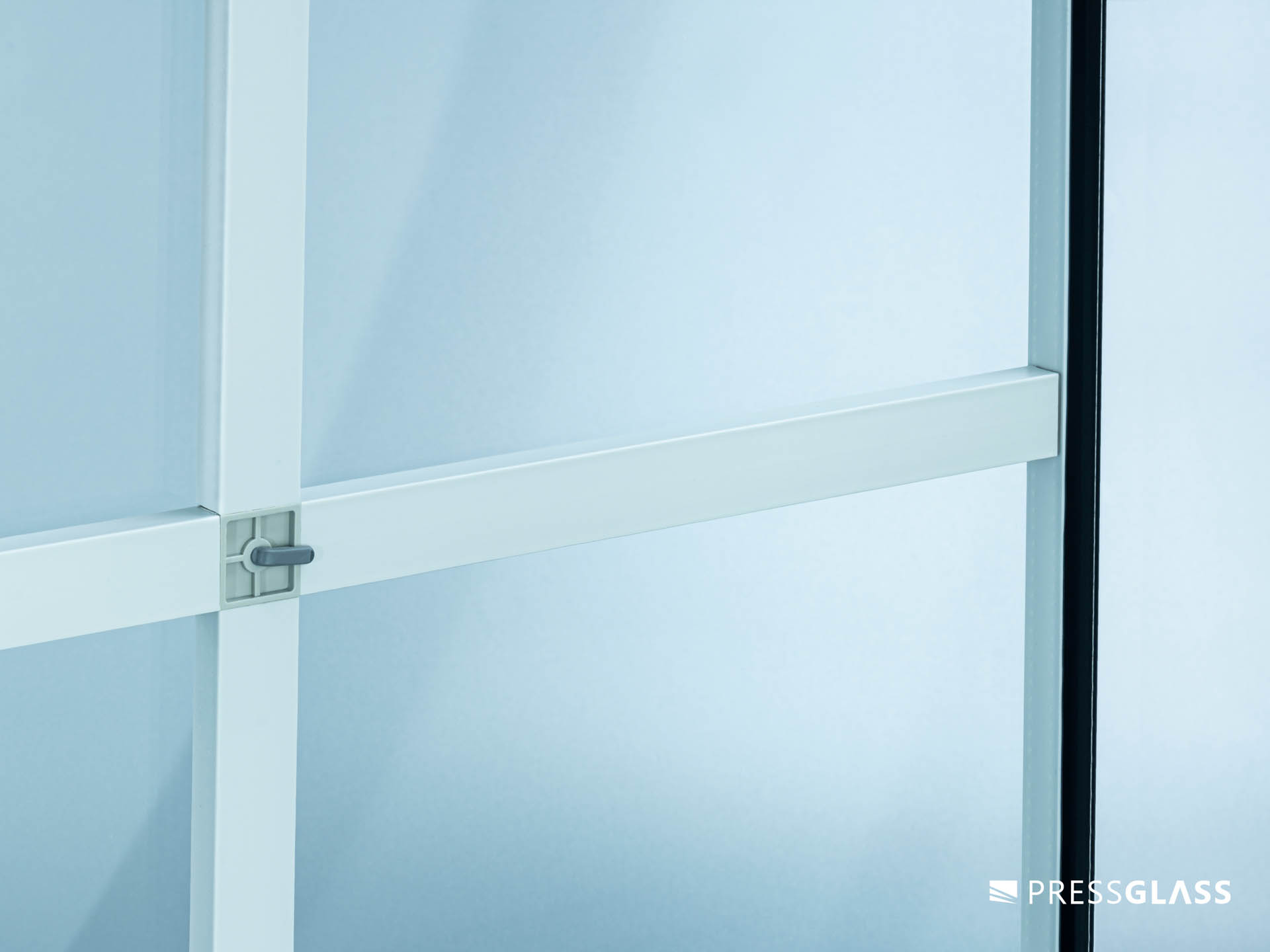

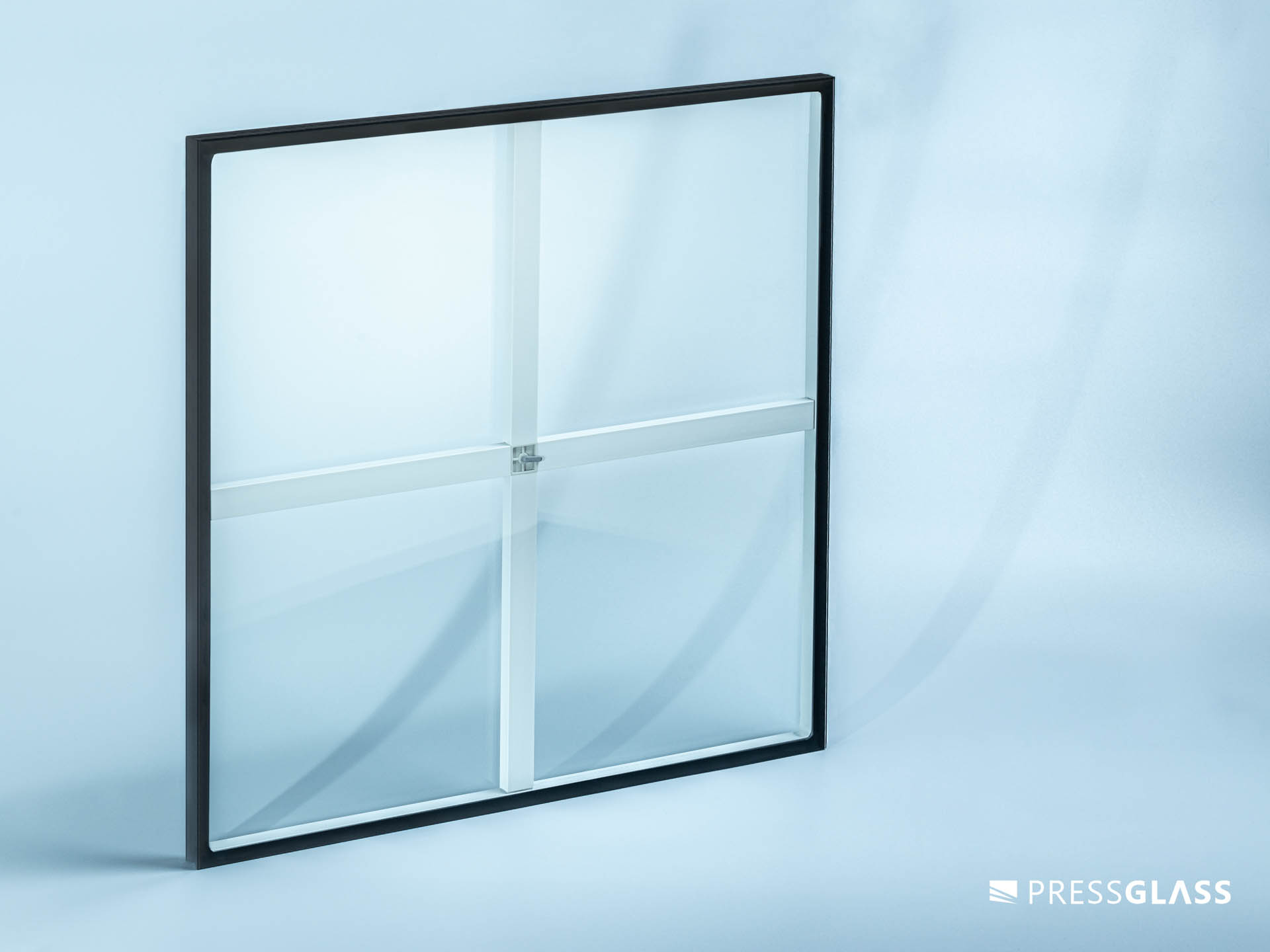

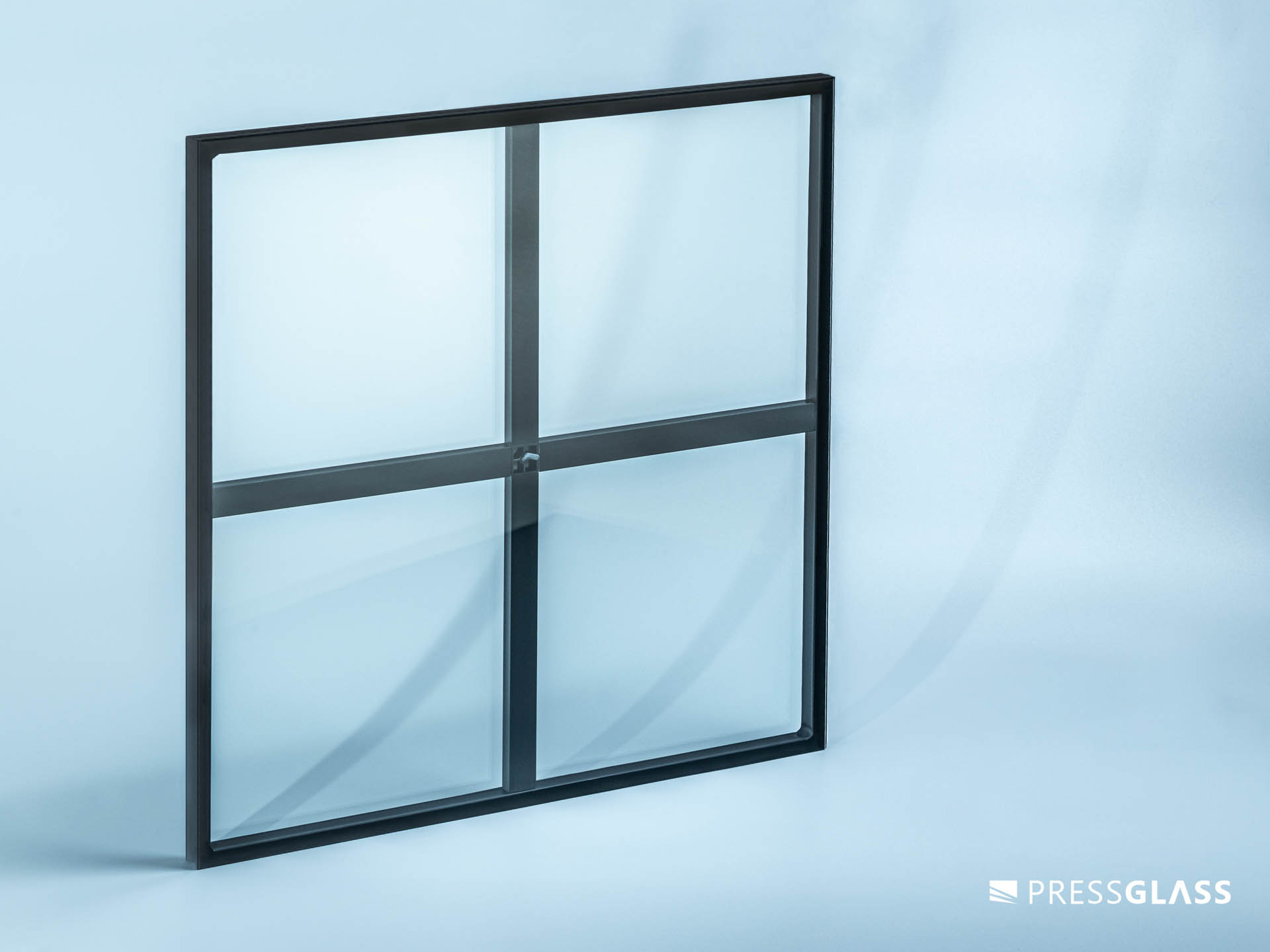

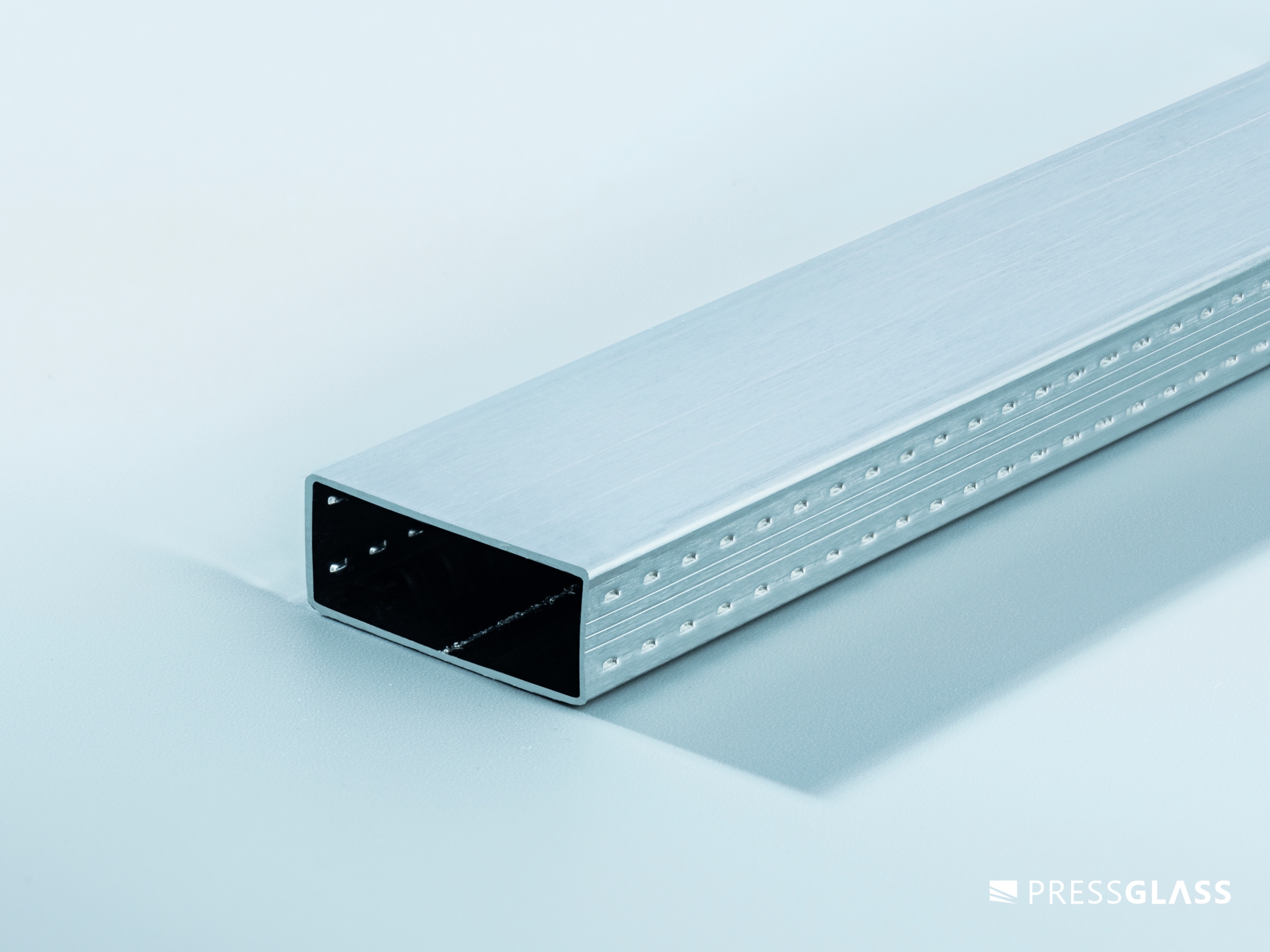

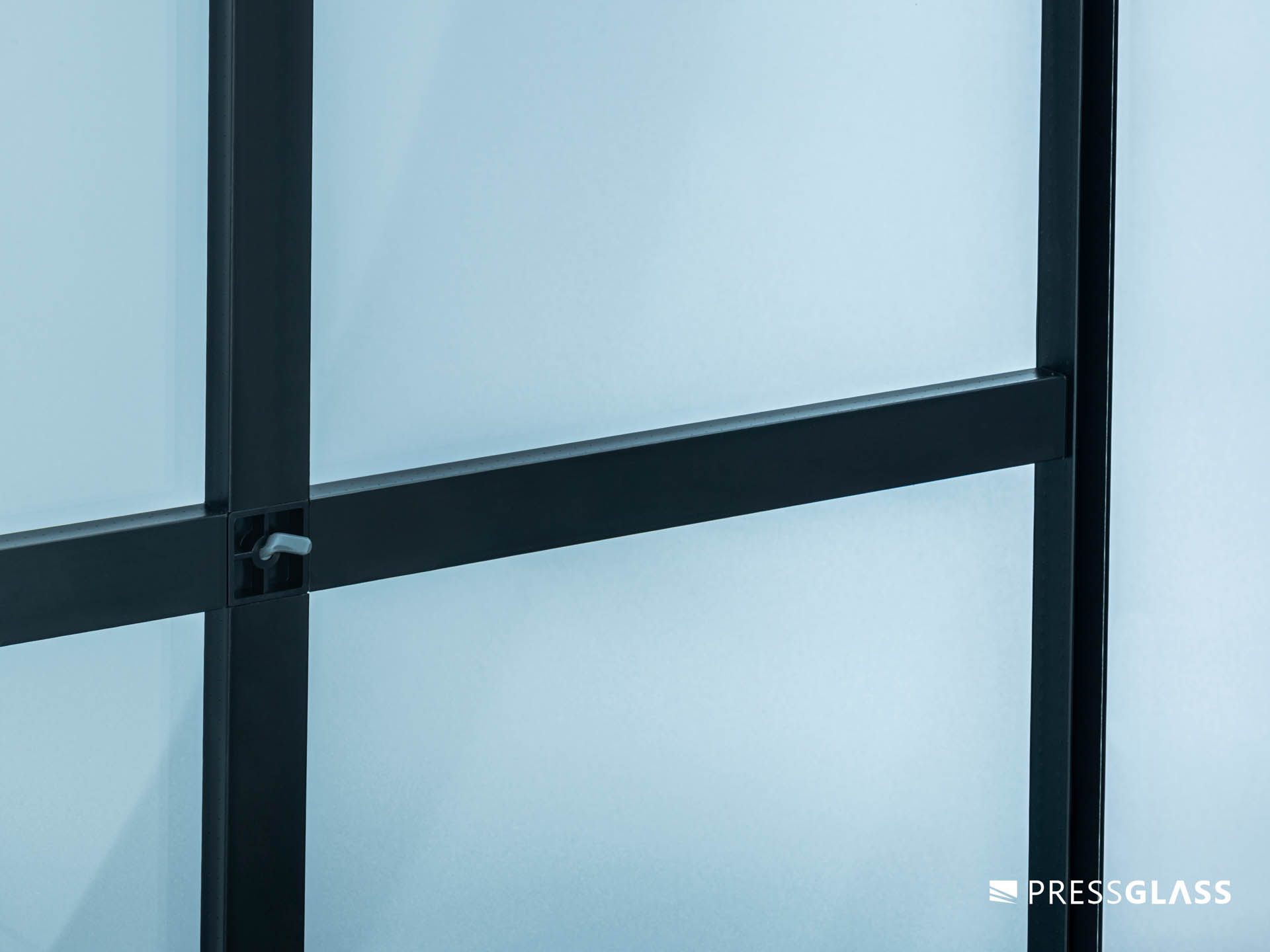

Duplex and Duplex TGI

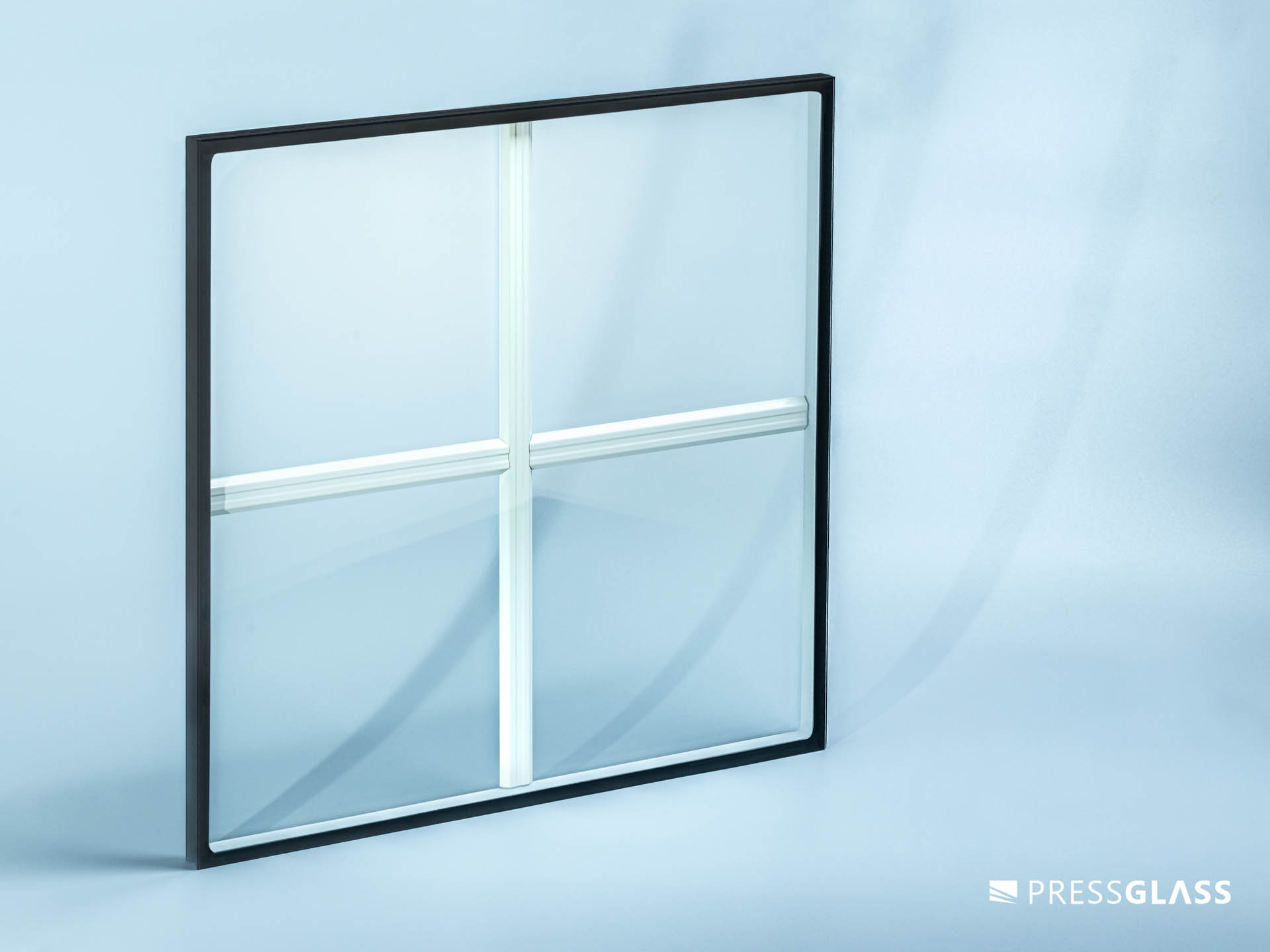

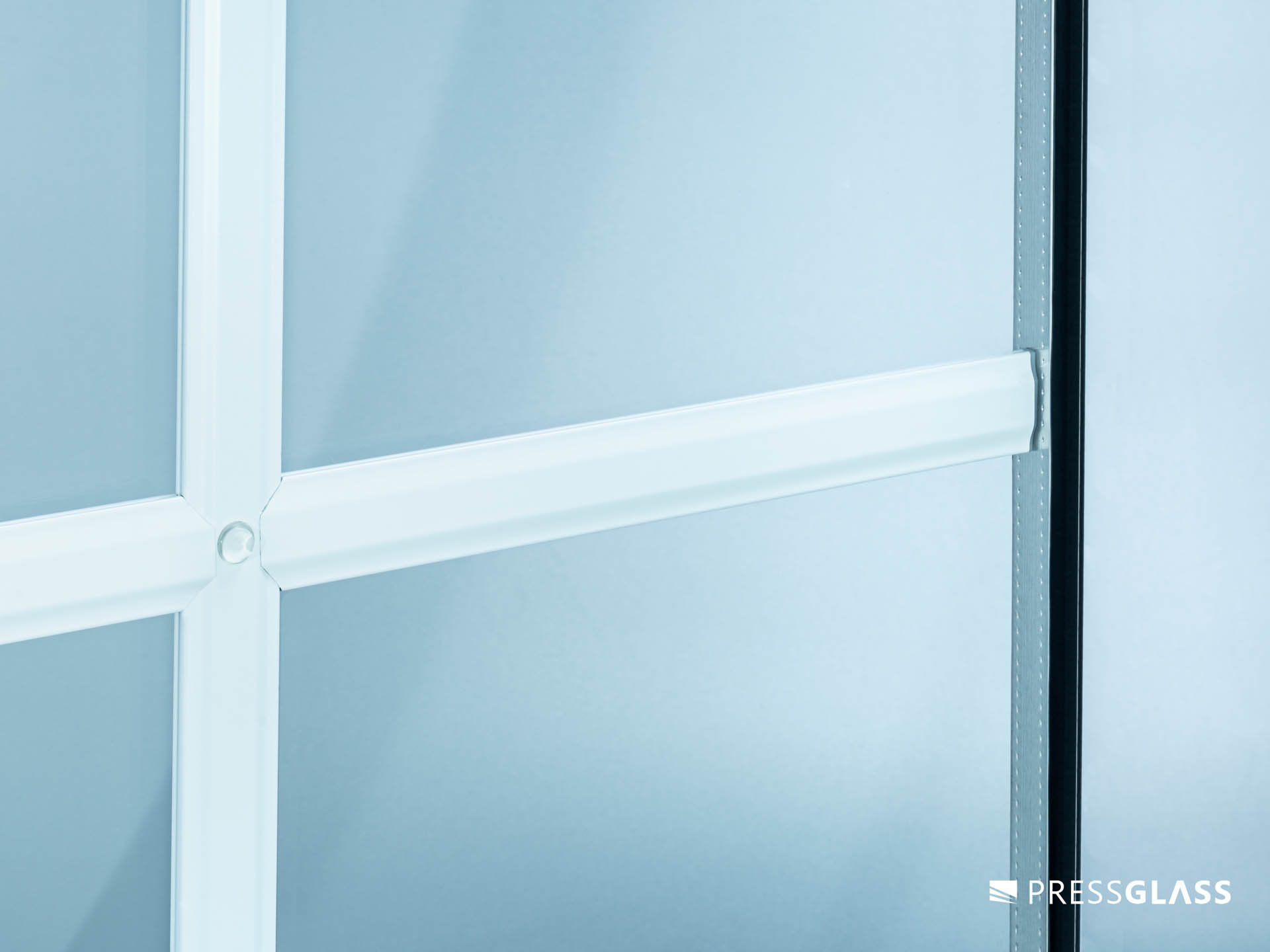

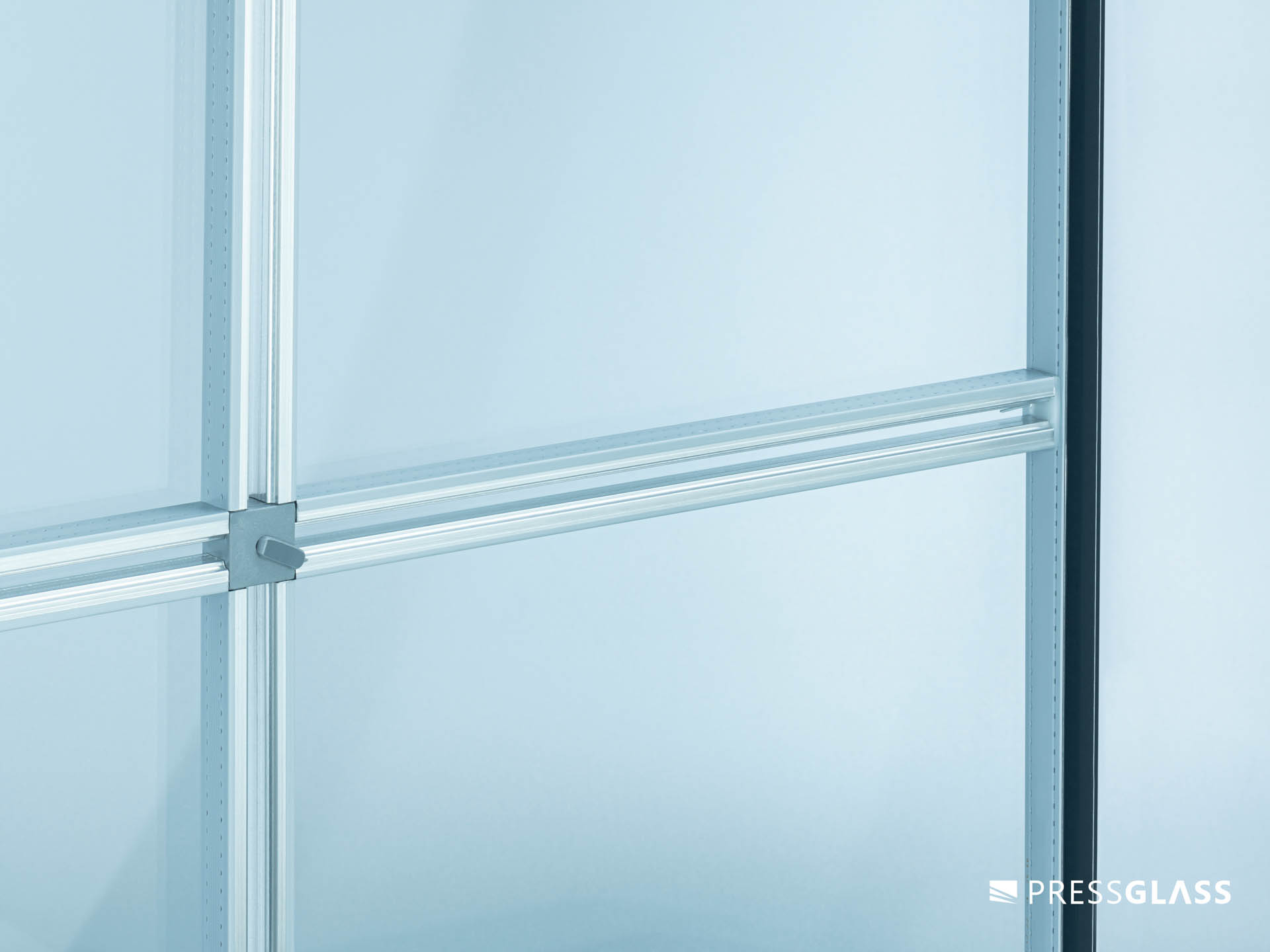

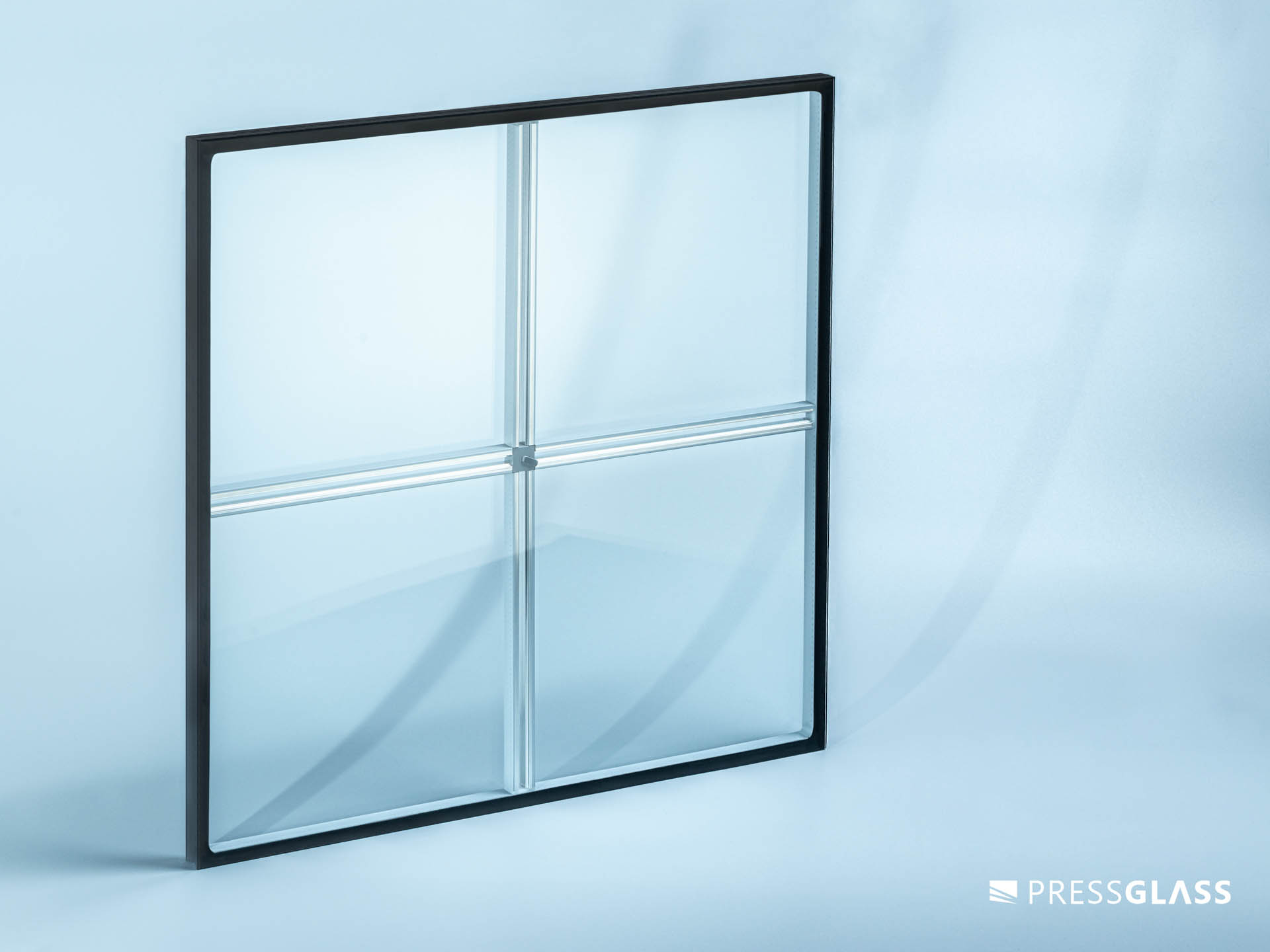

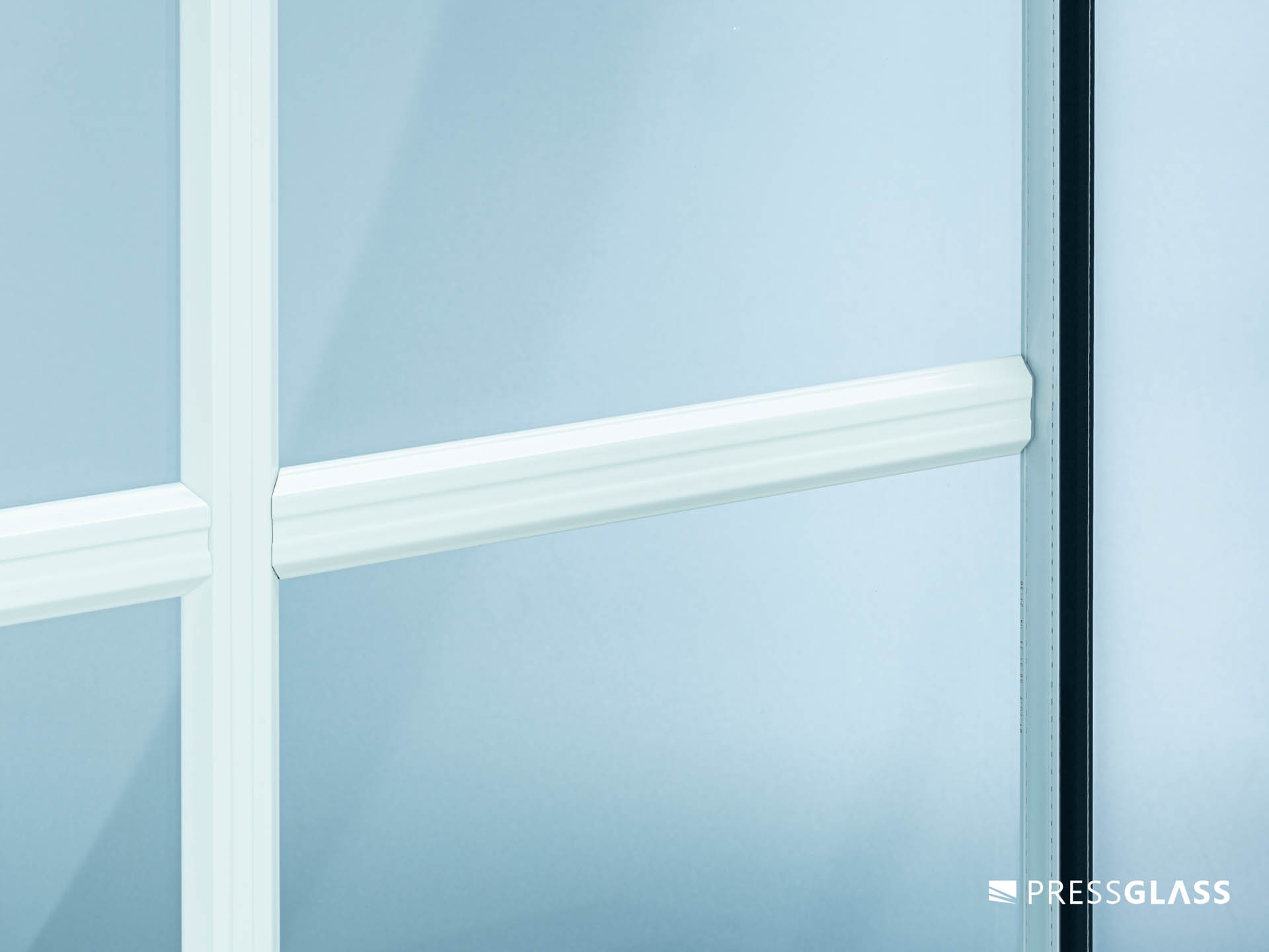

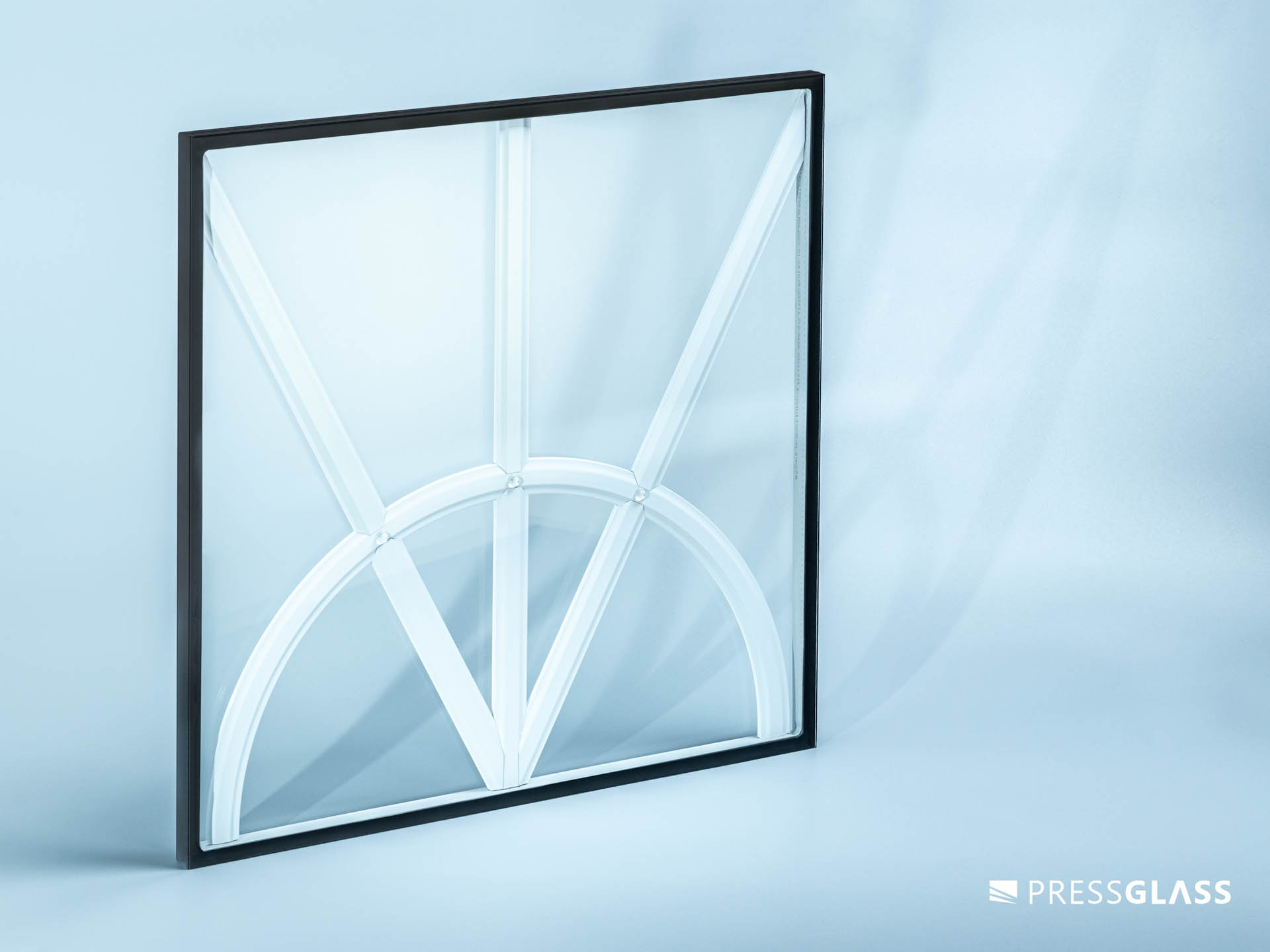

Gallery of window dividers
in the insulated glass units
Gallery

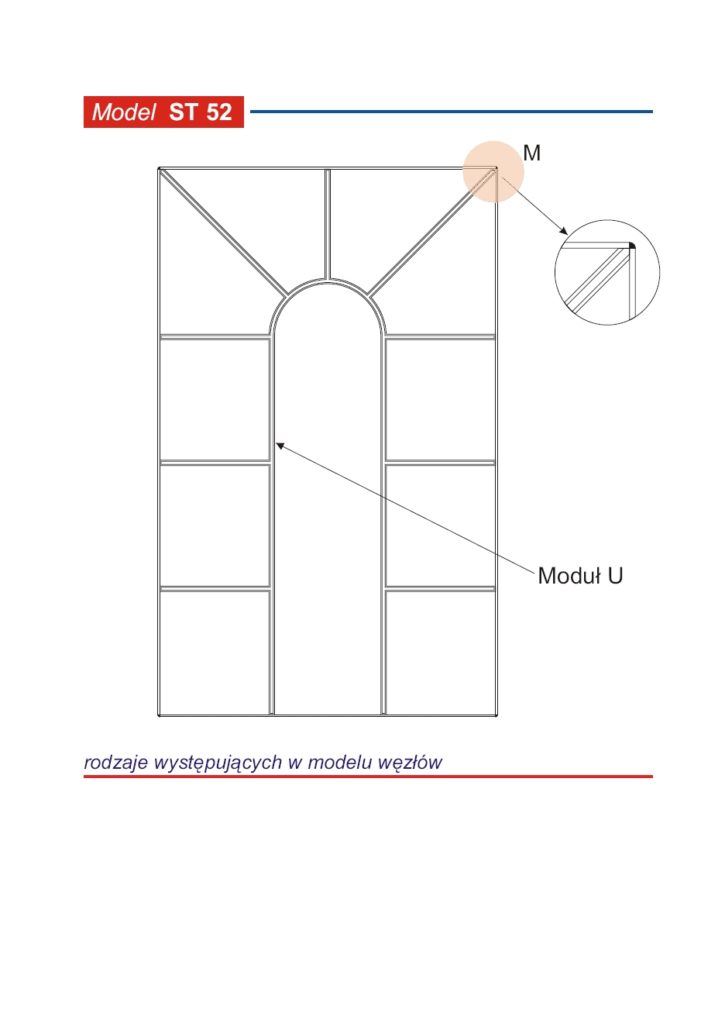

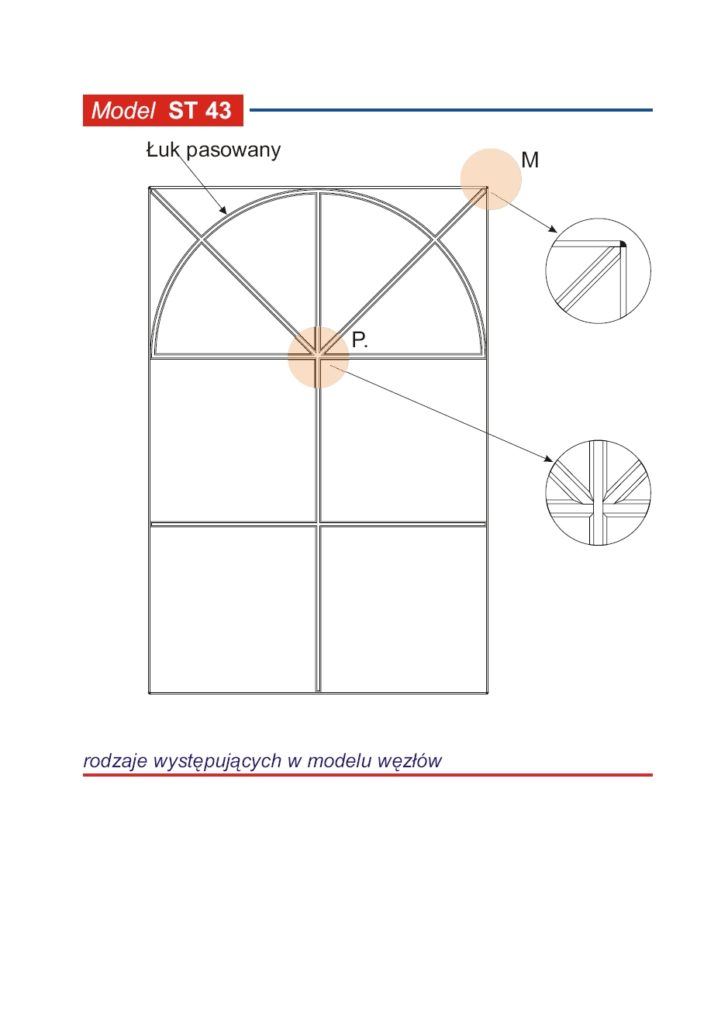

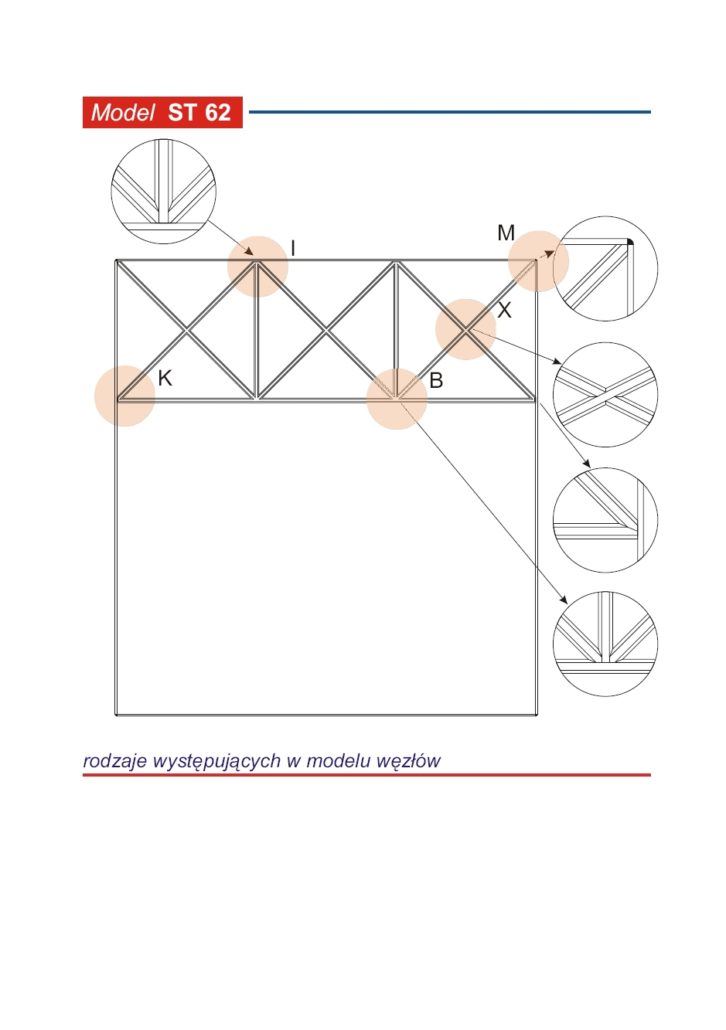

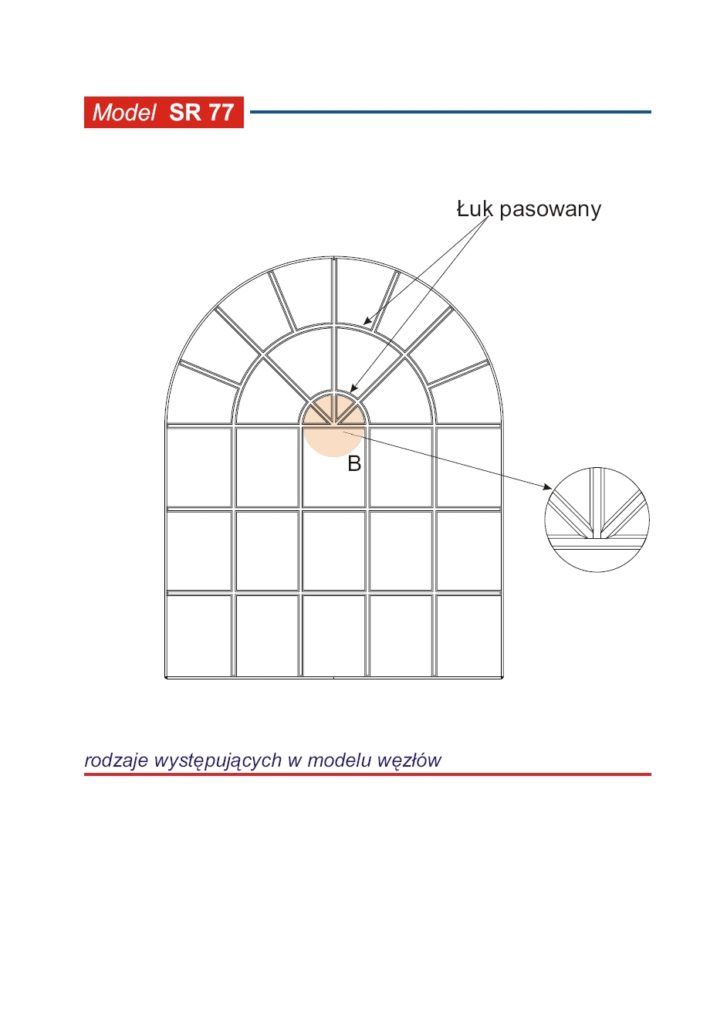

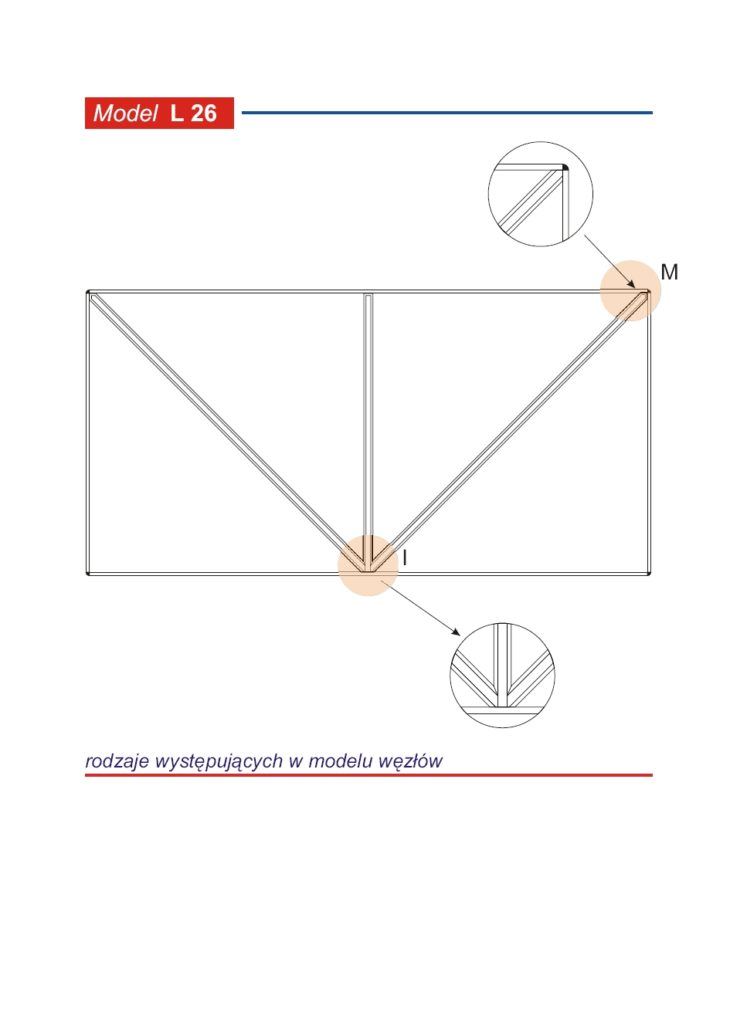

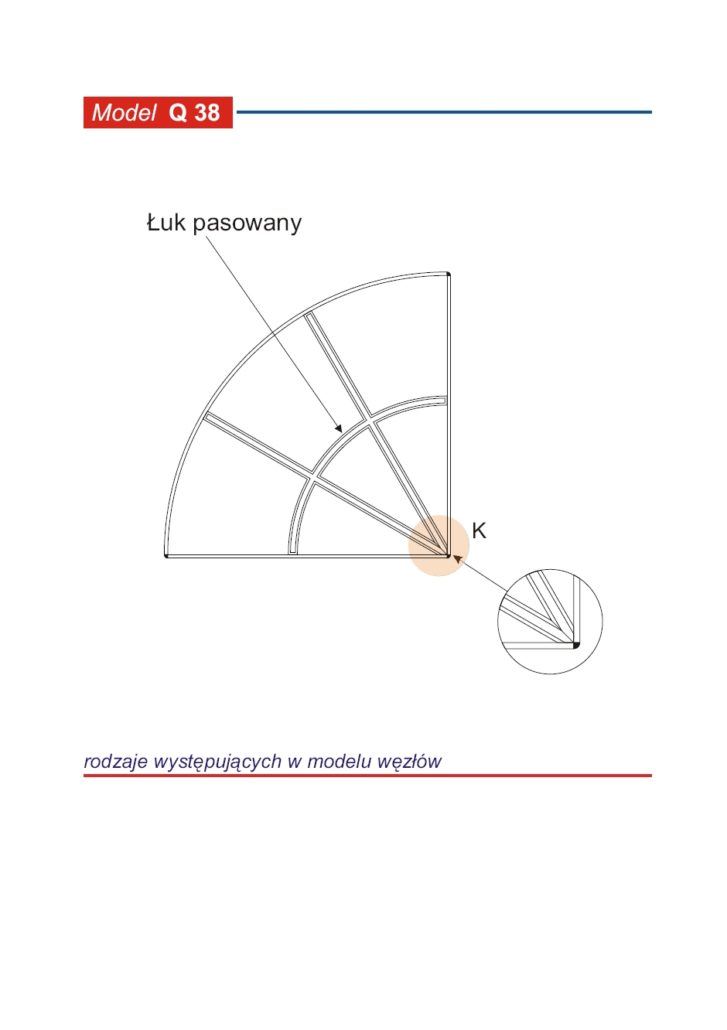

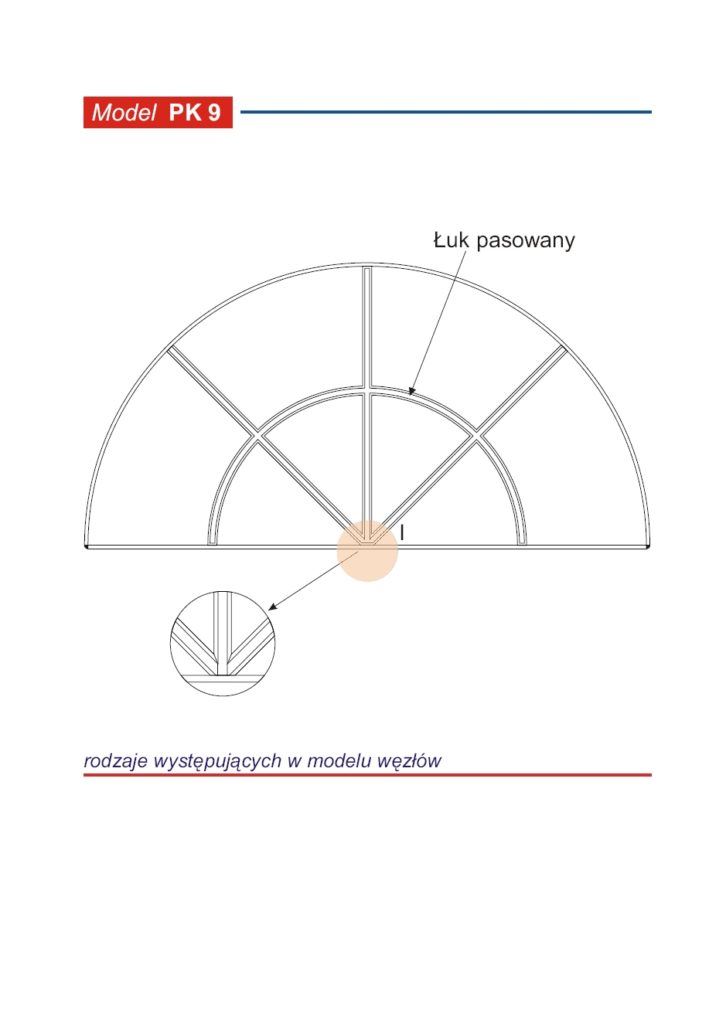

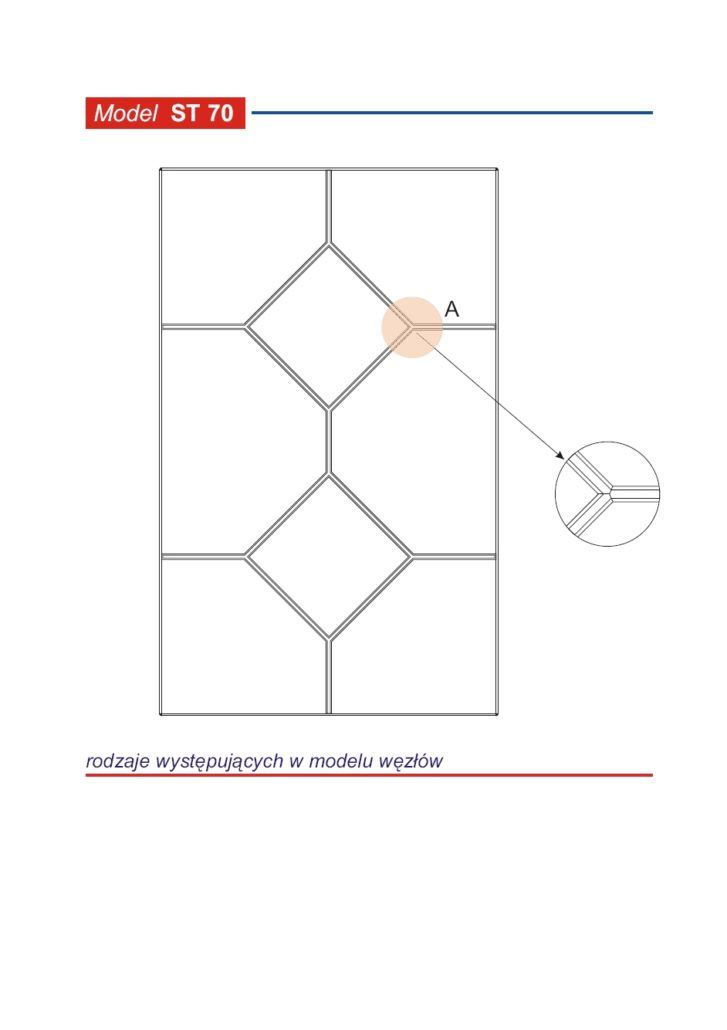

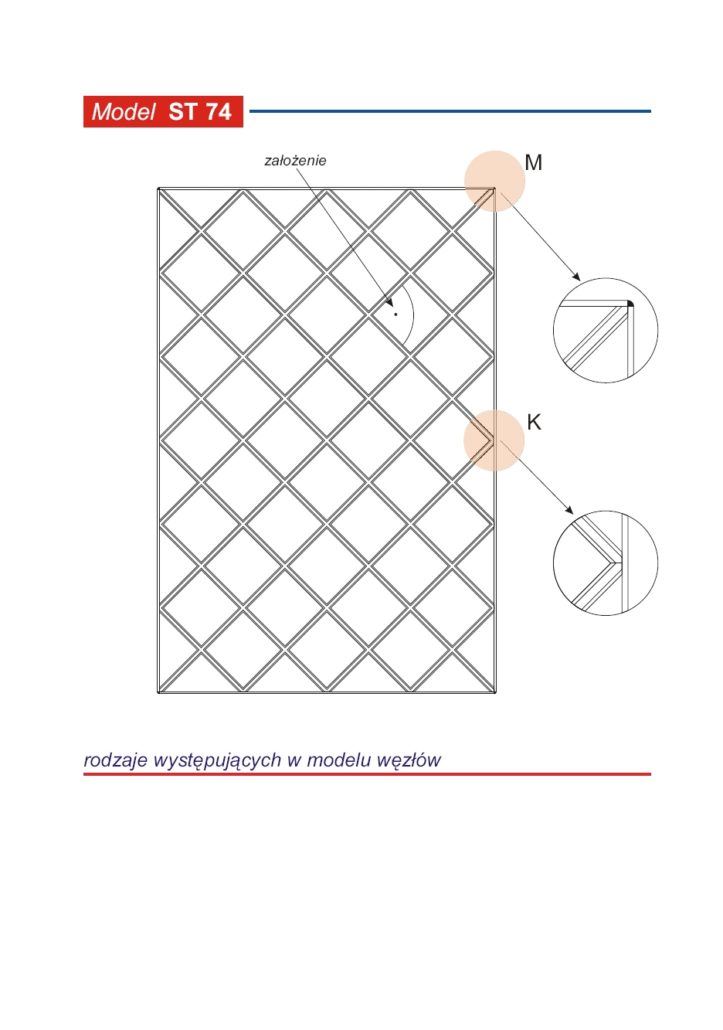

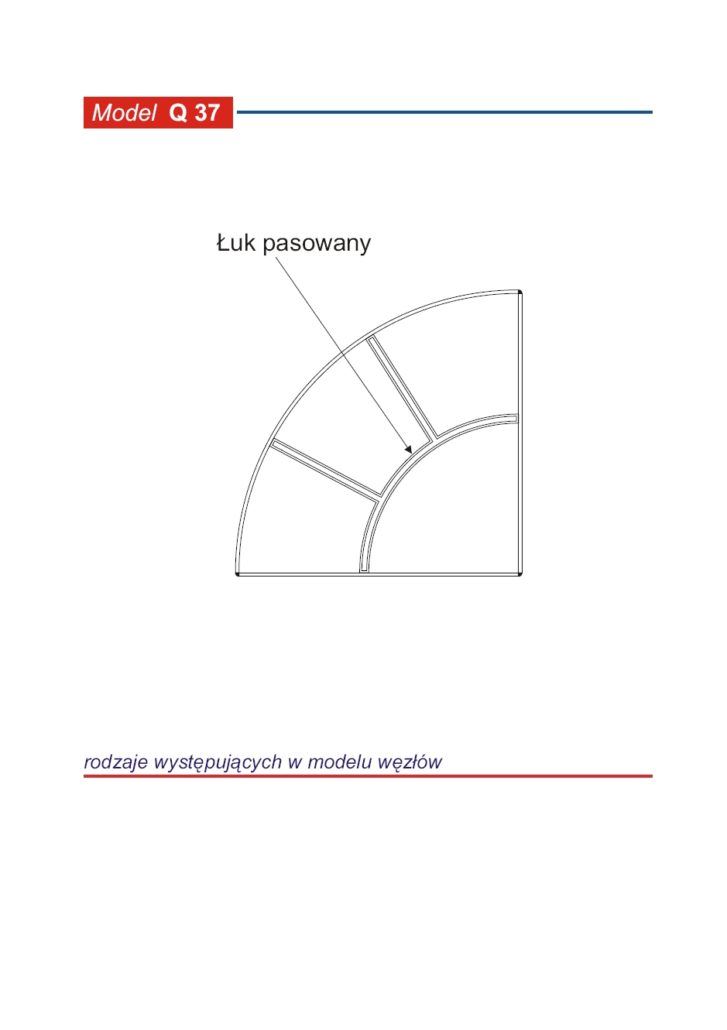

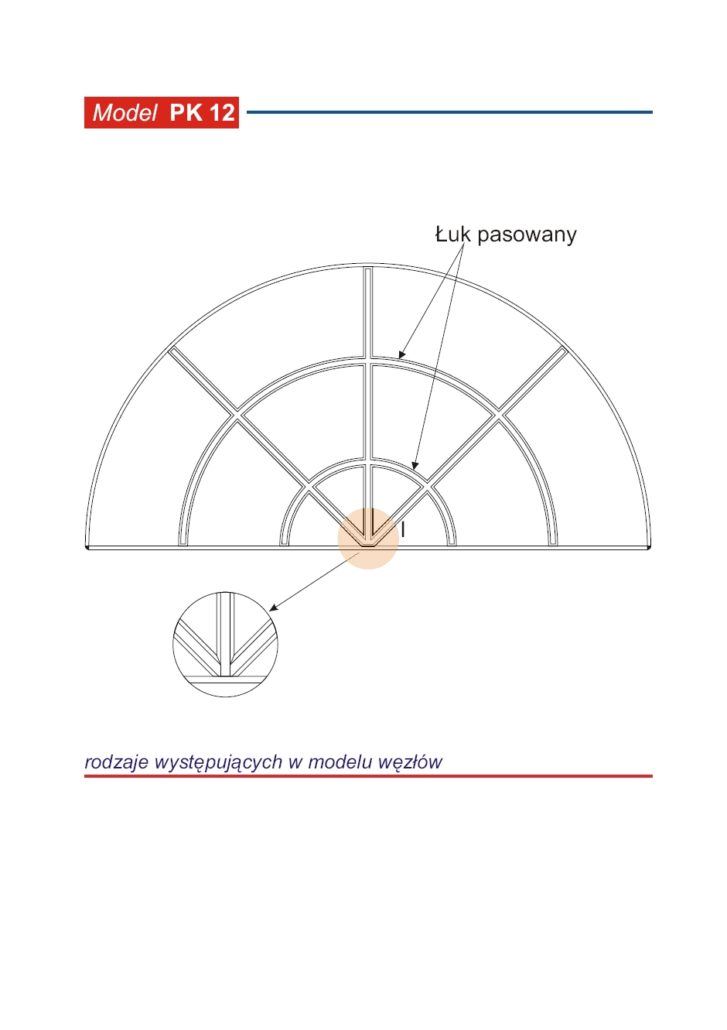

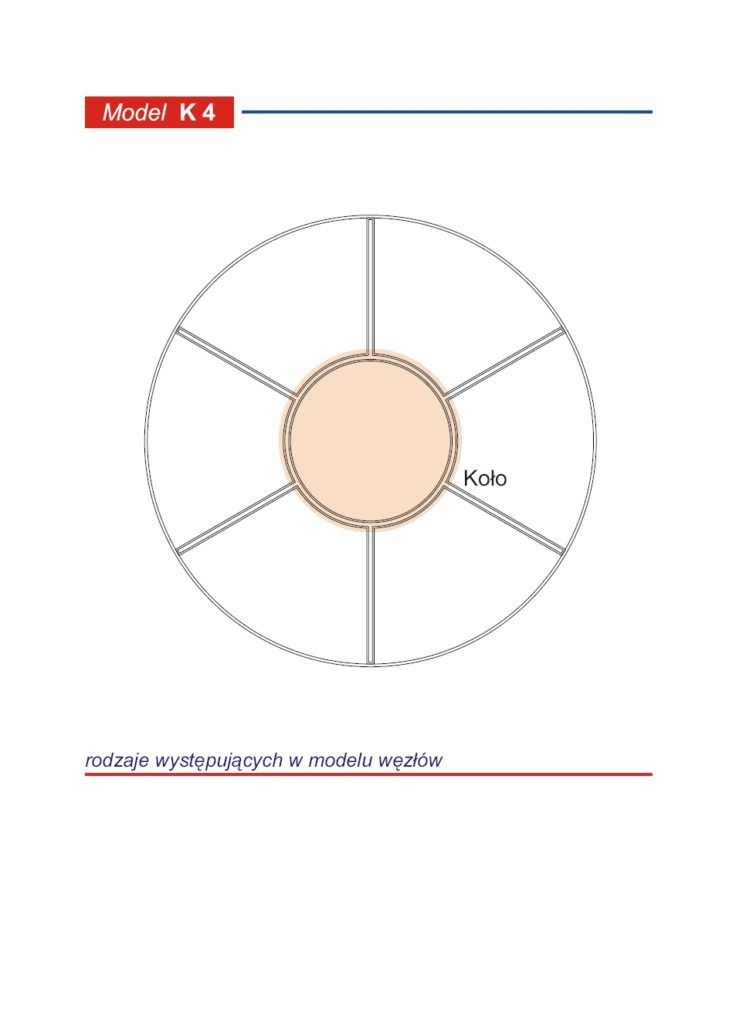

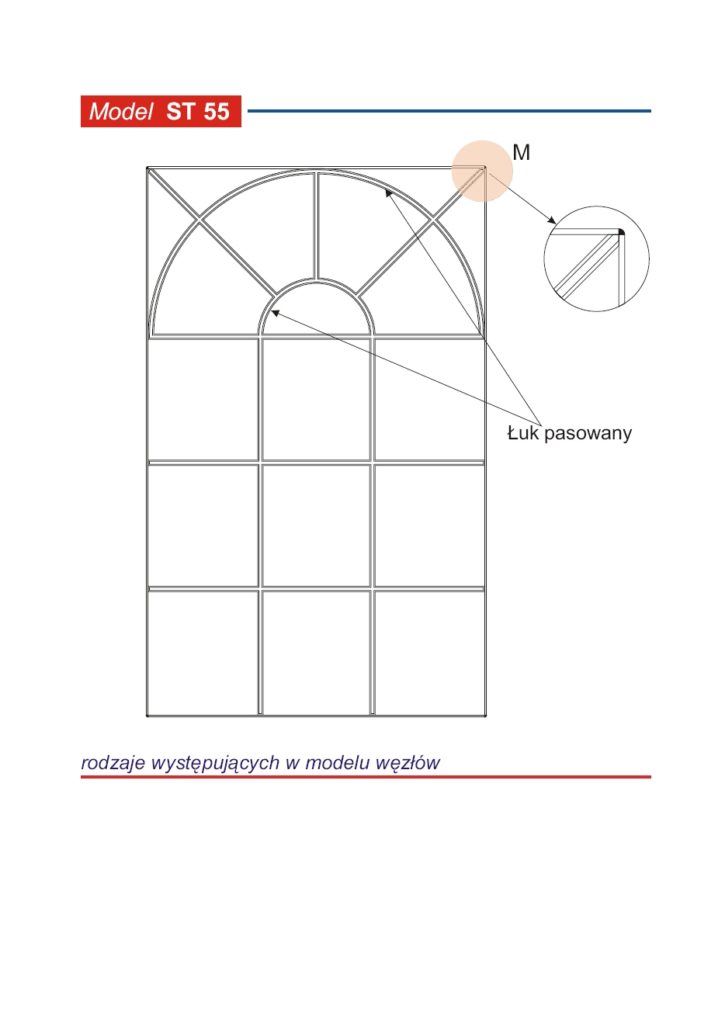

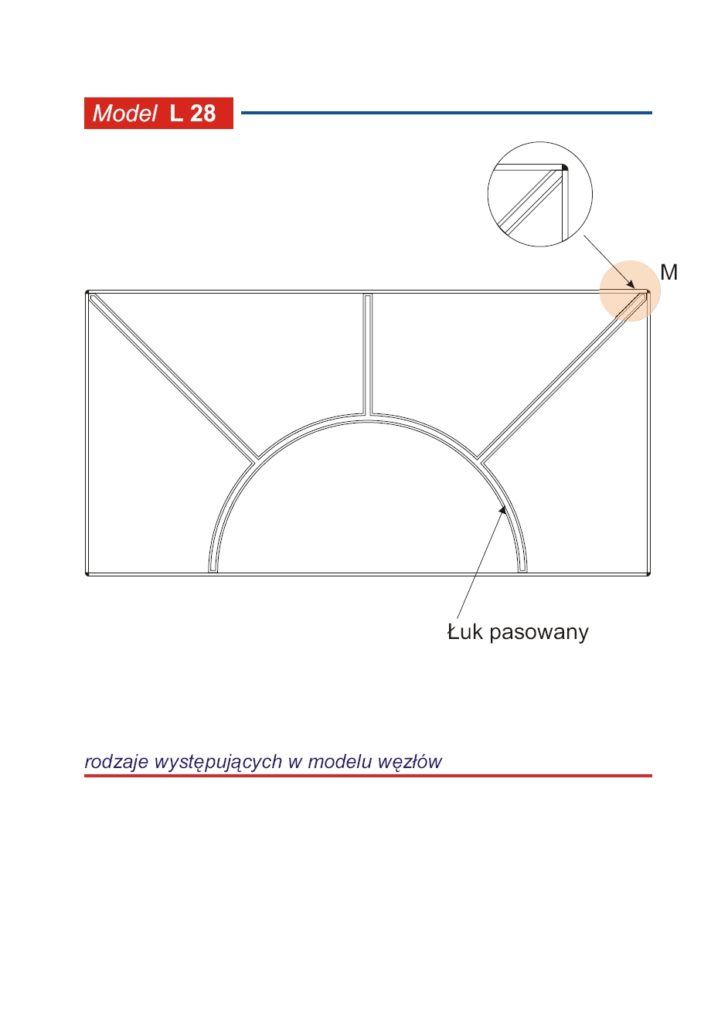

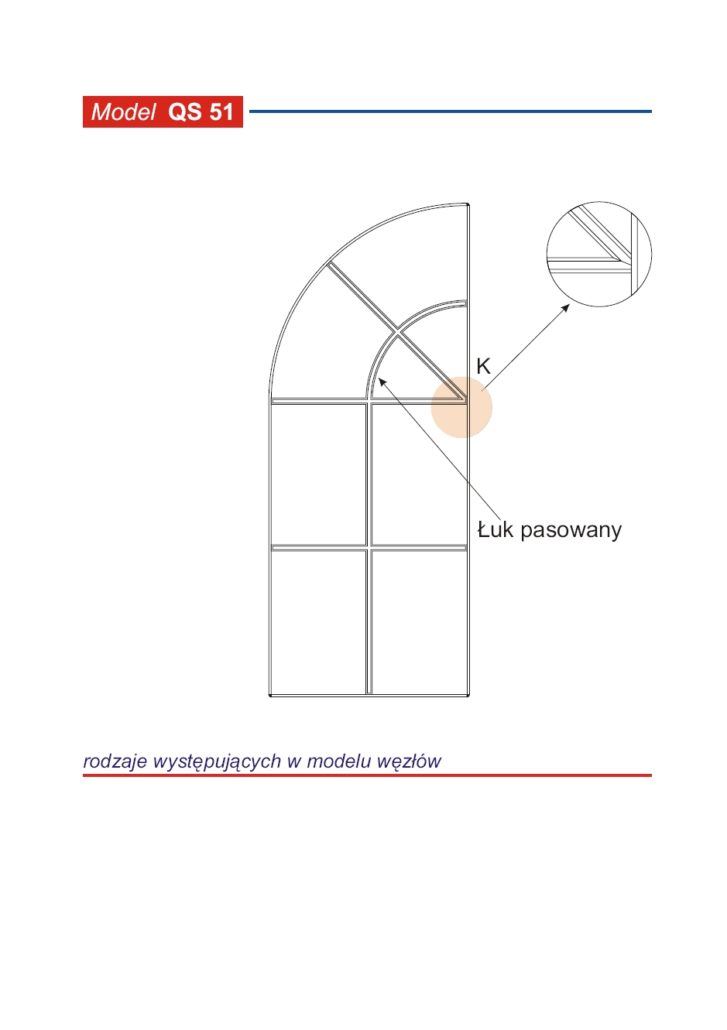

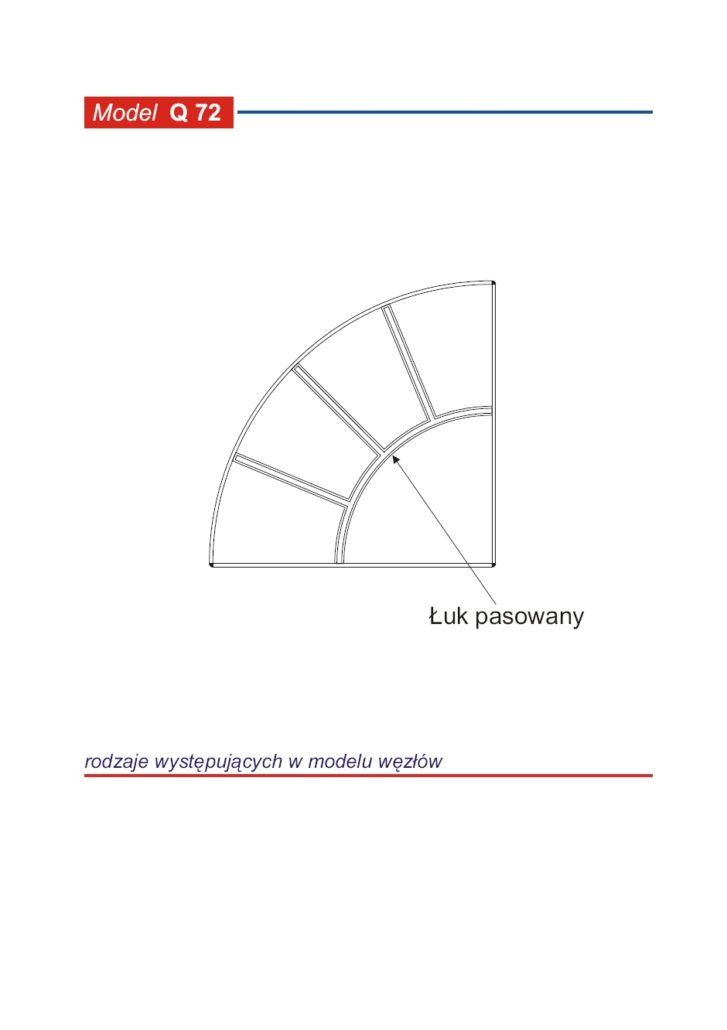

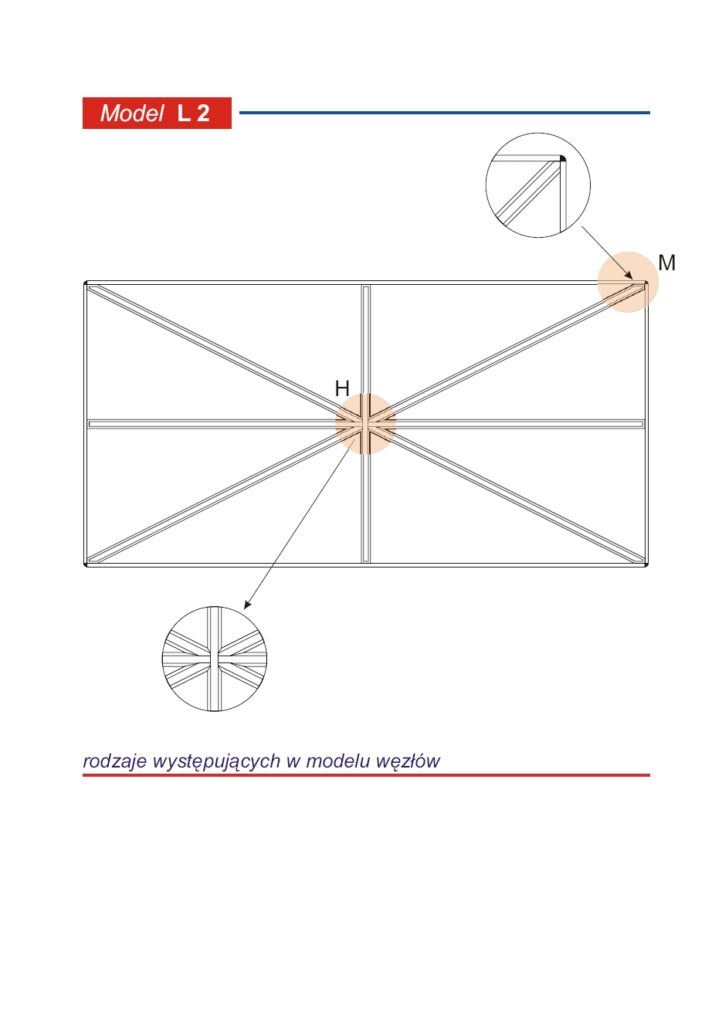

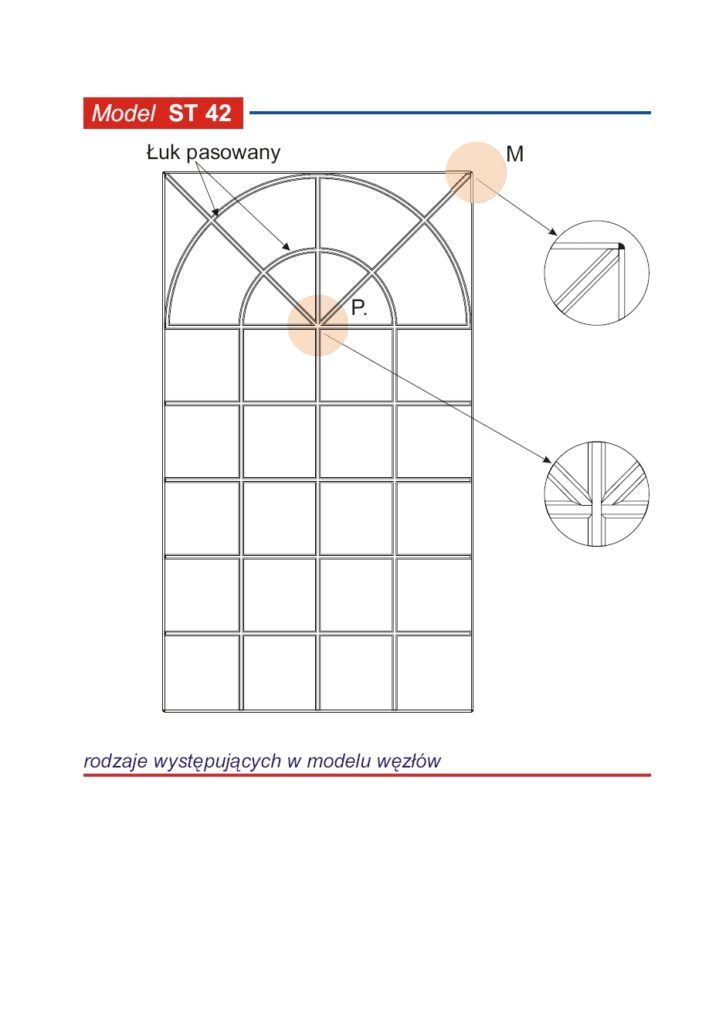

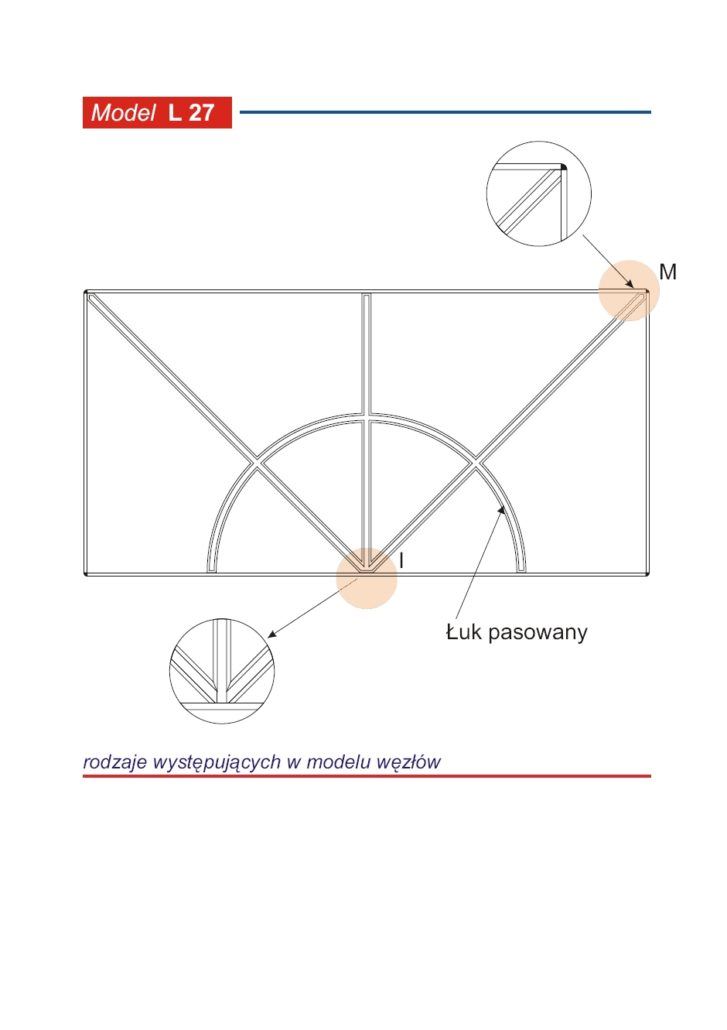

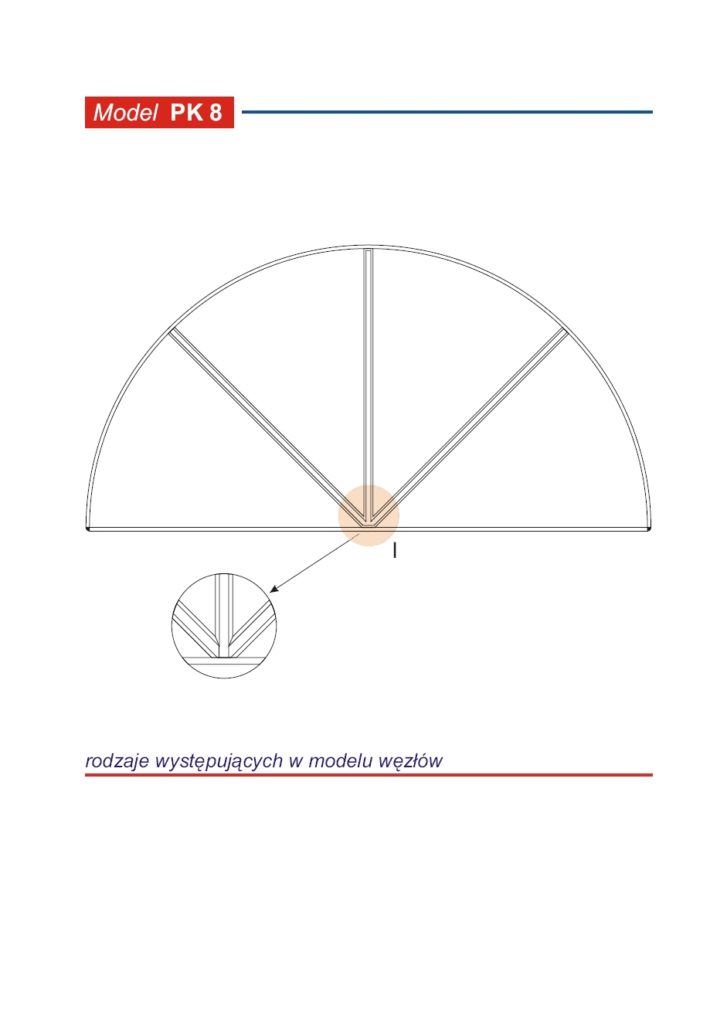

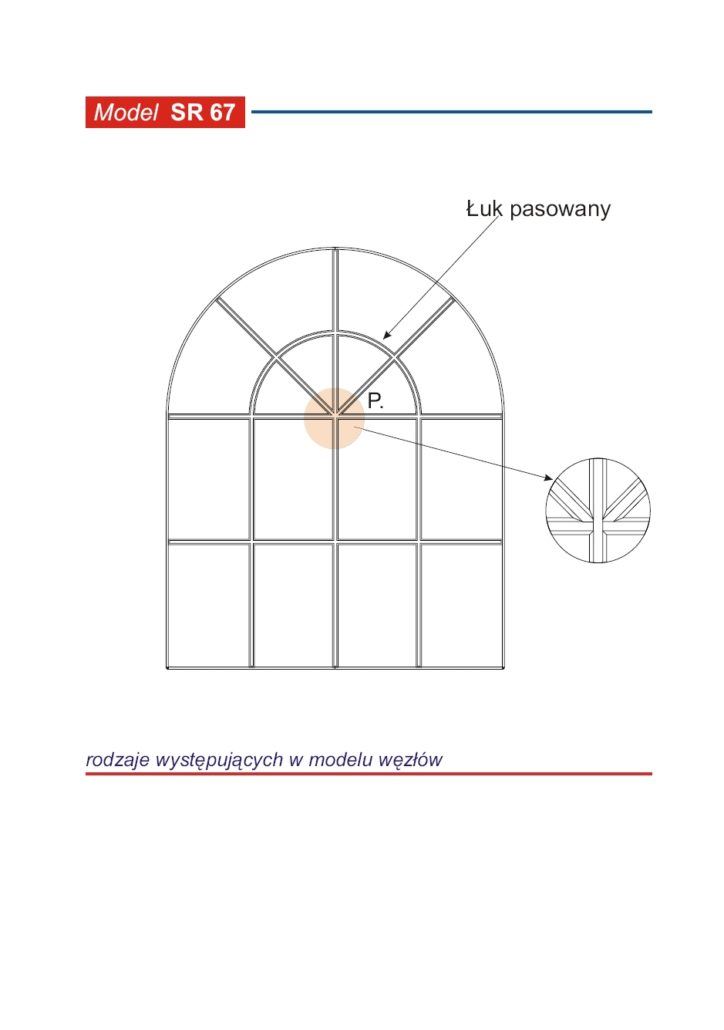

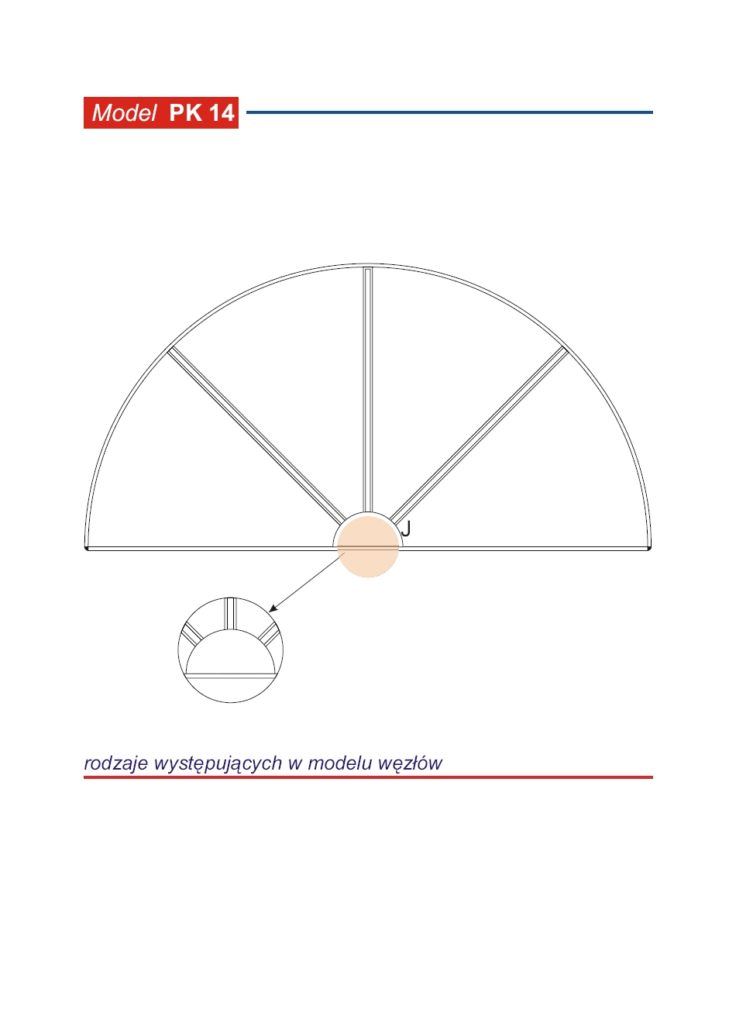

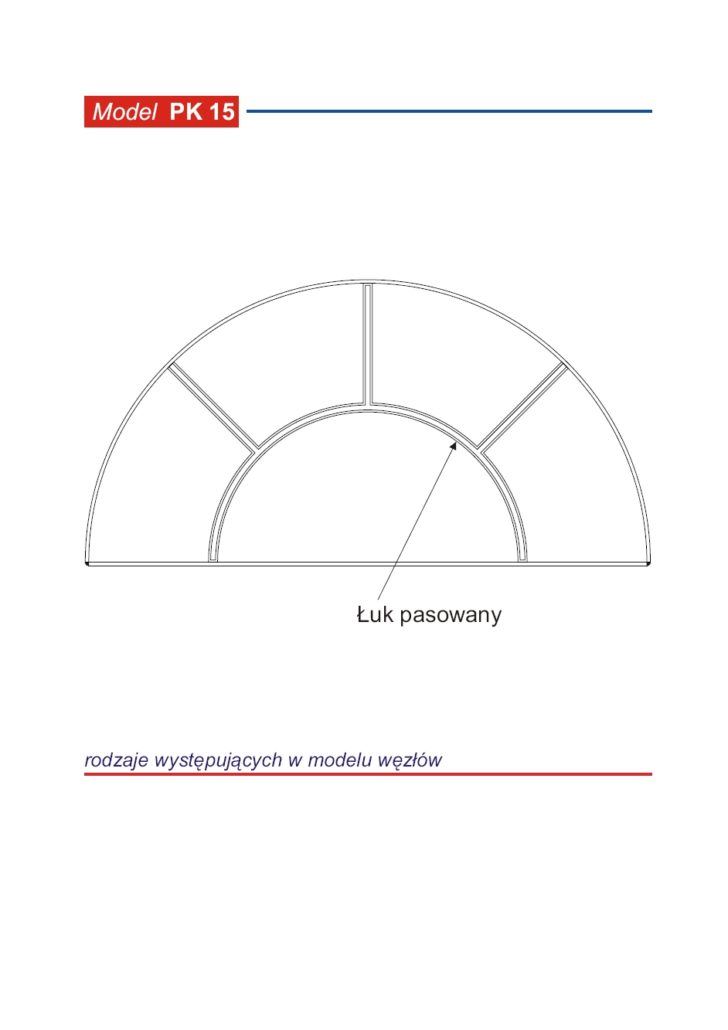

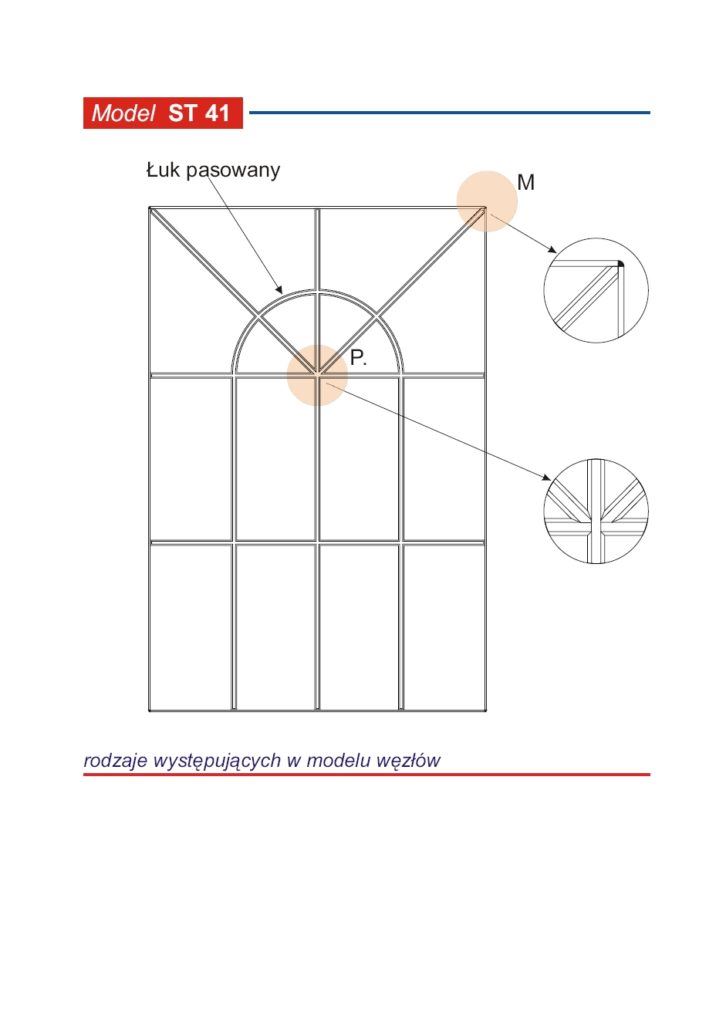

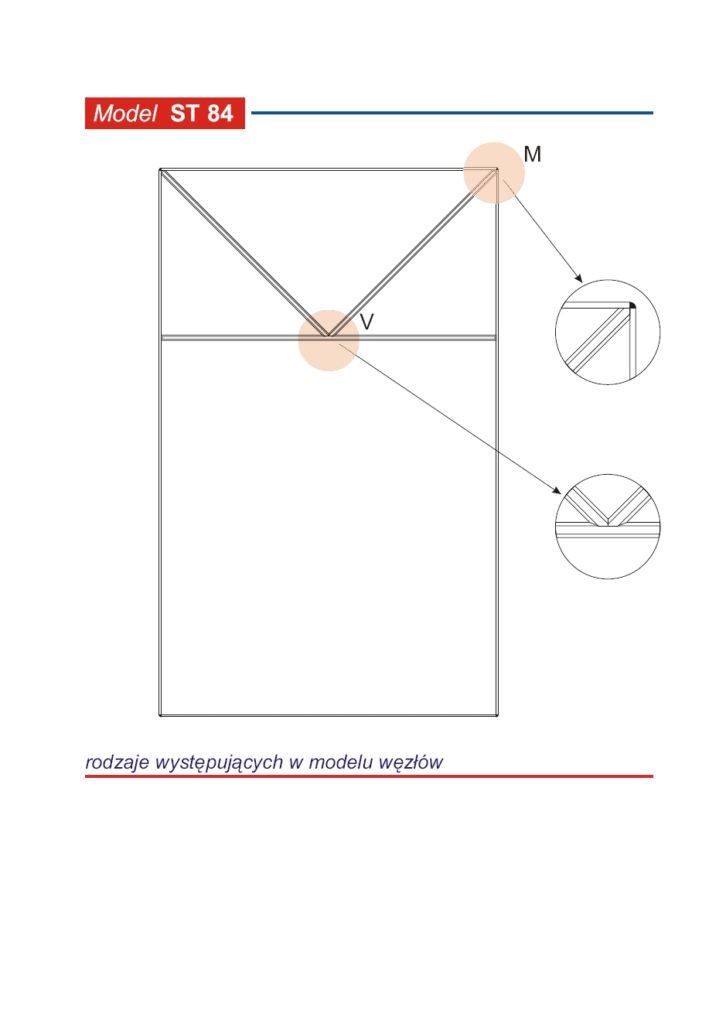

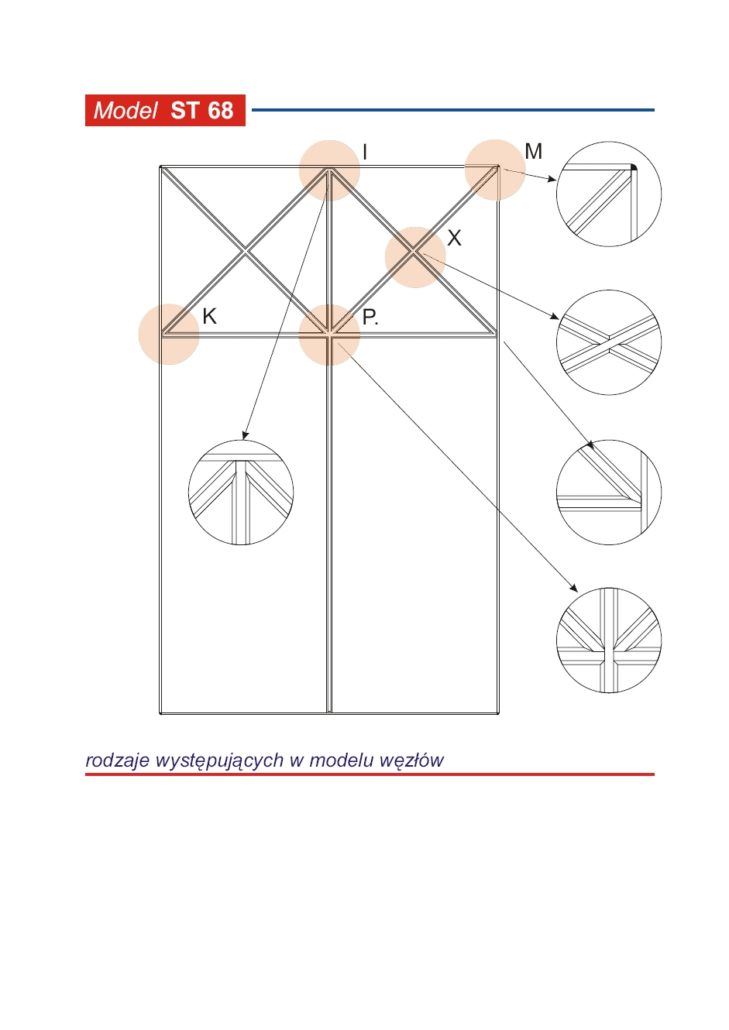

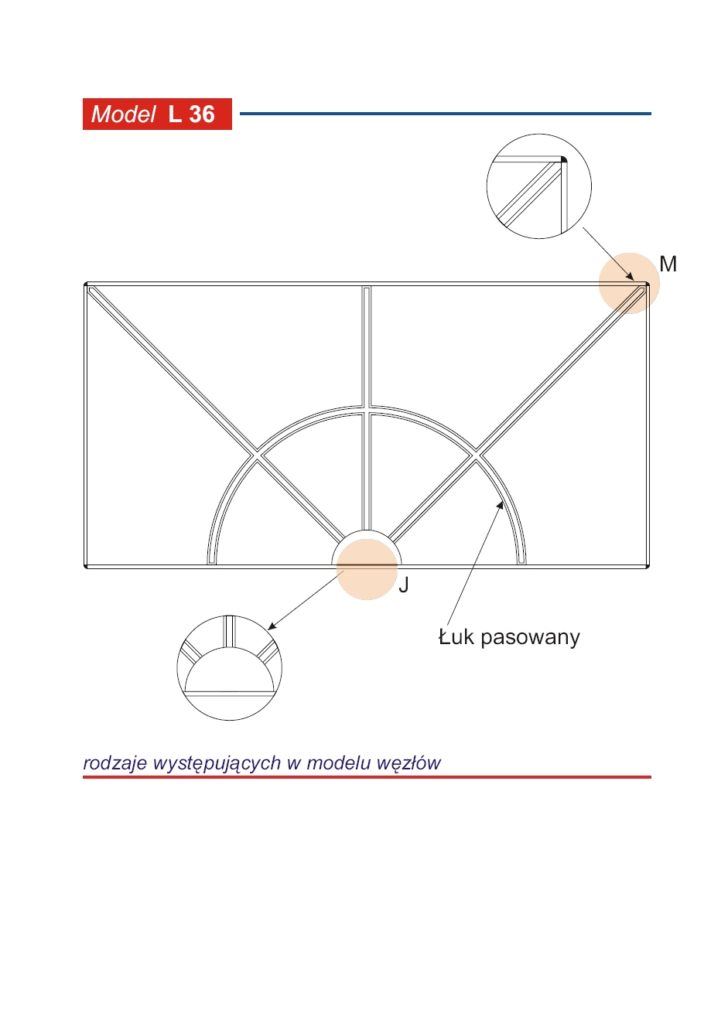

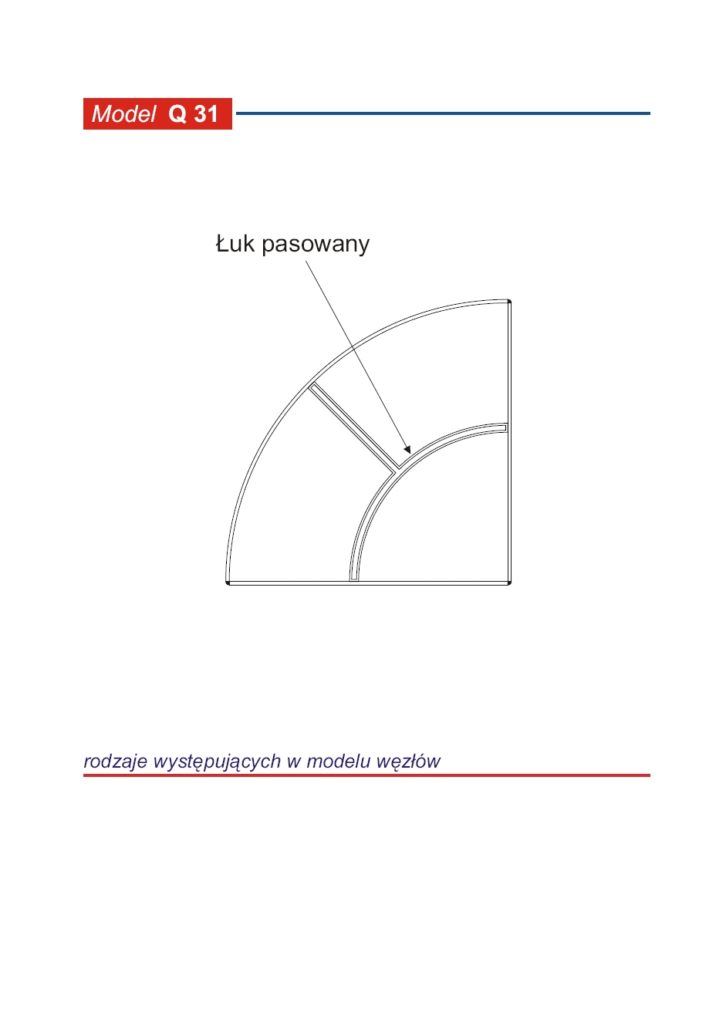

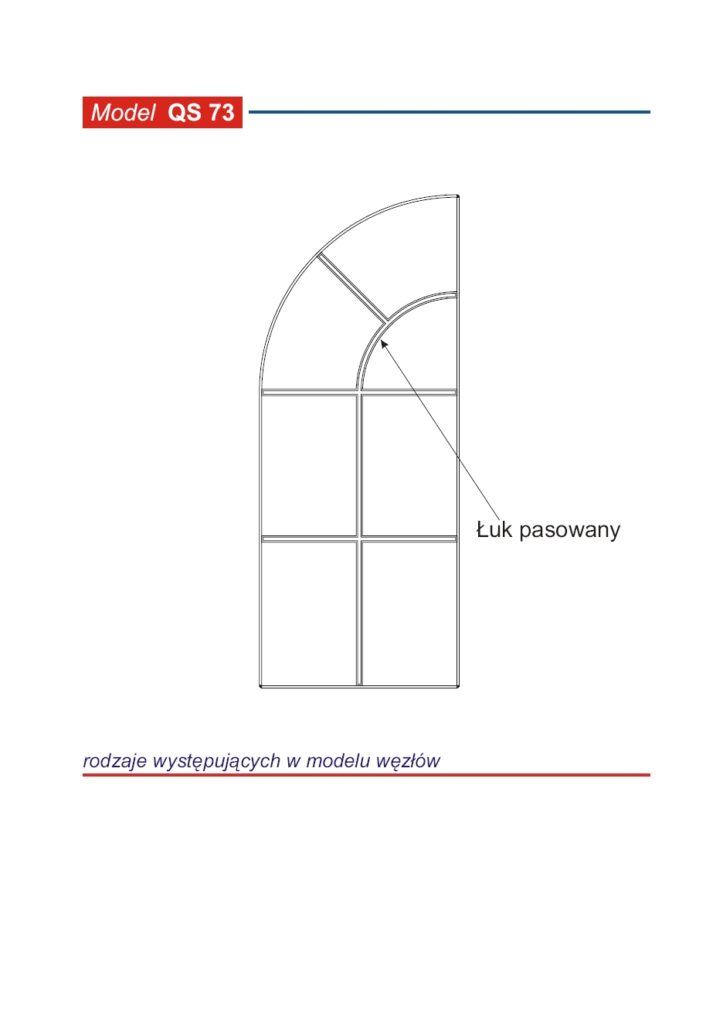

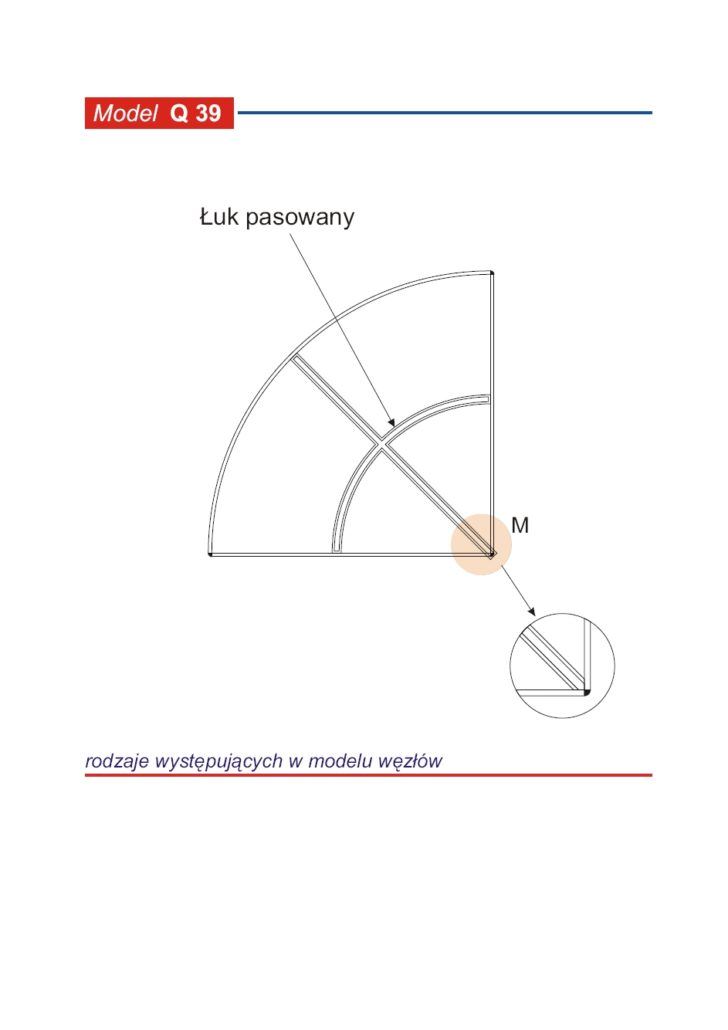

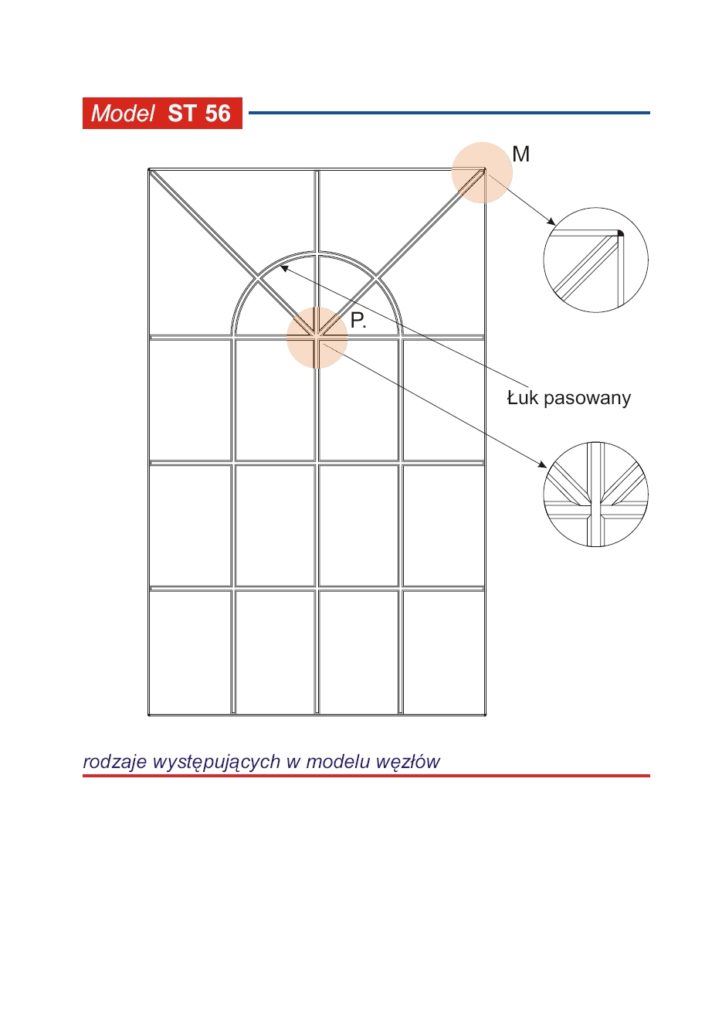

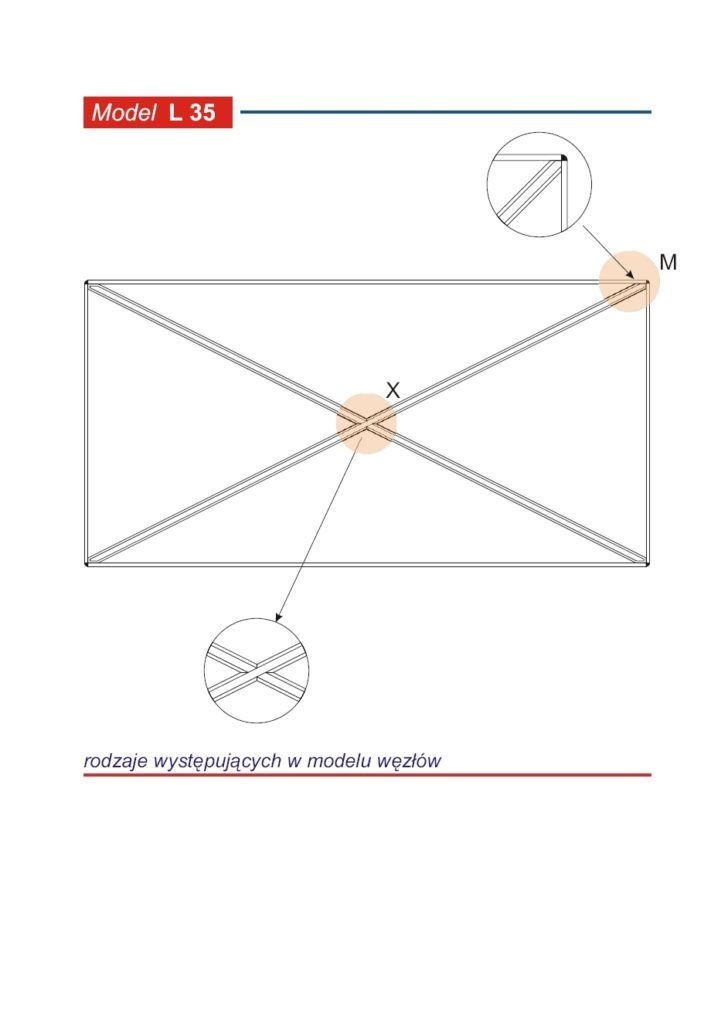

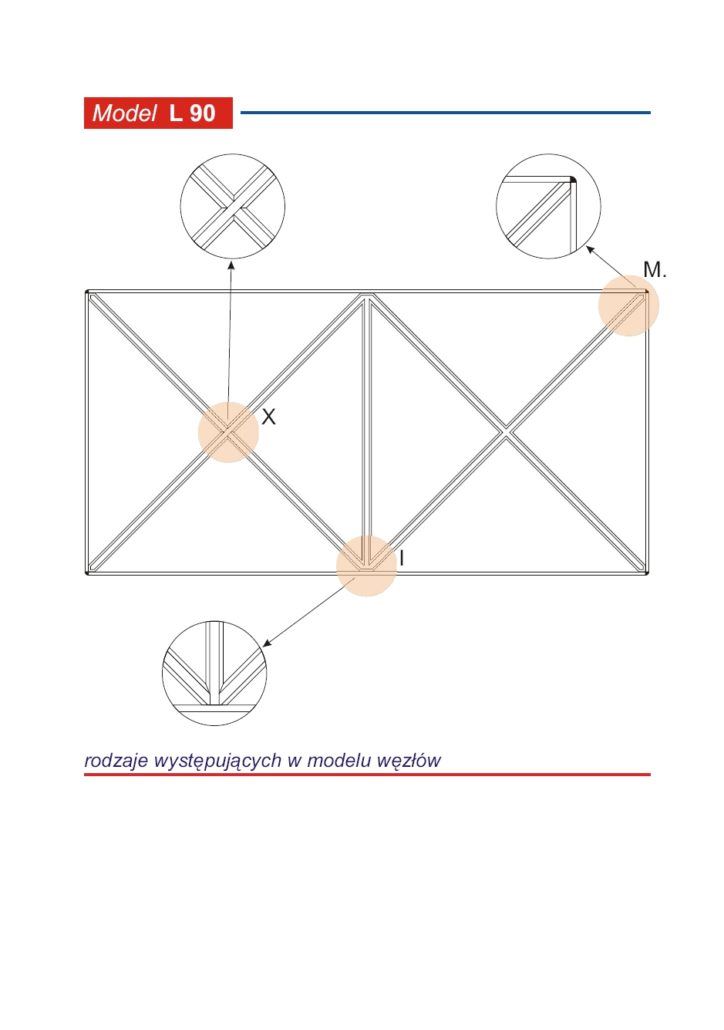

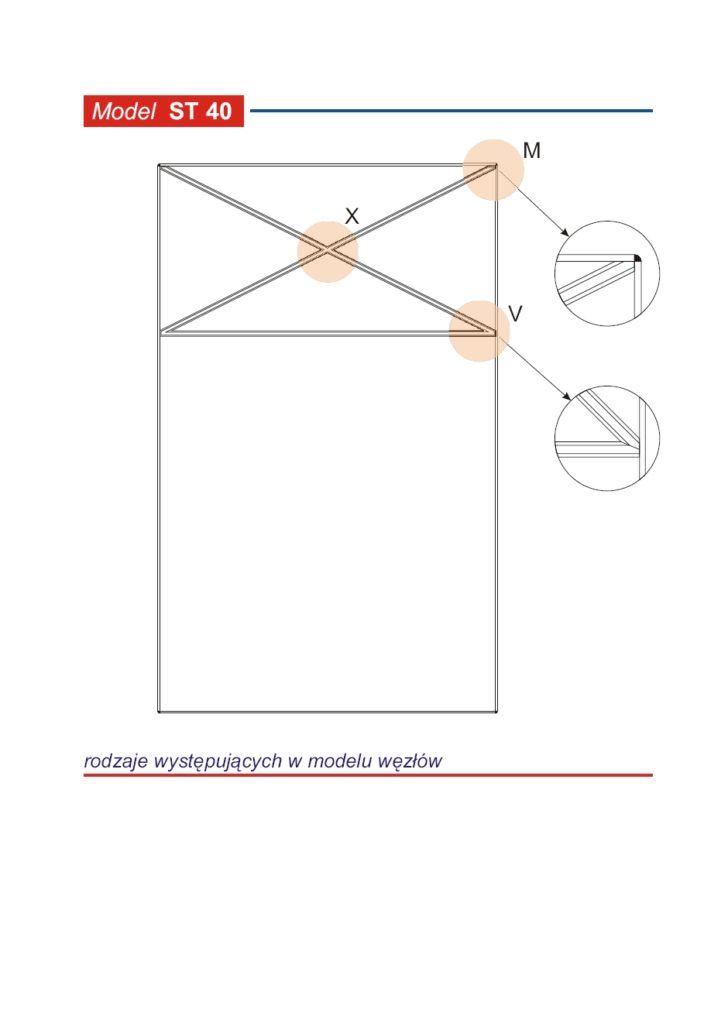

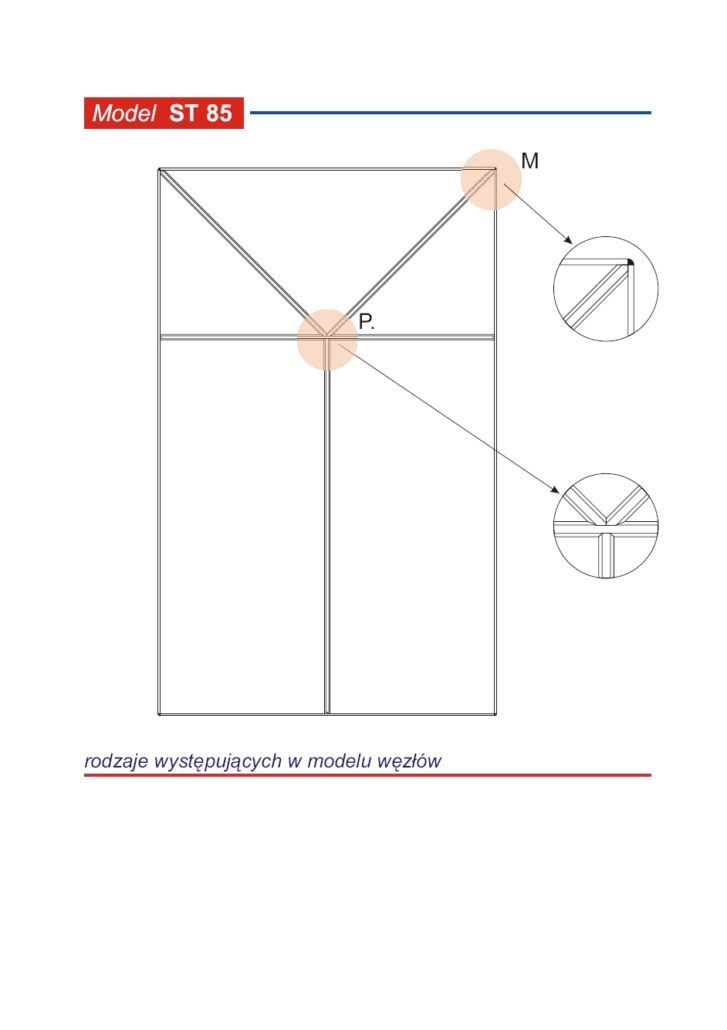

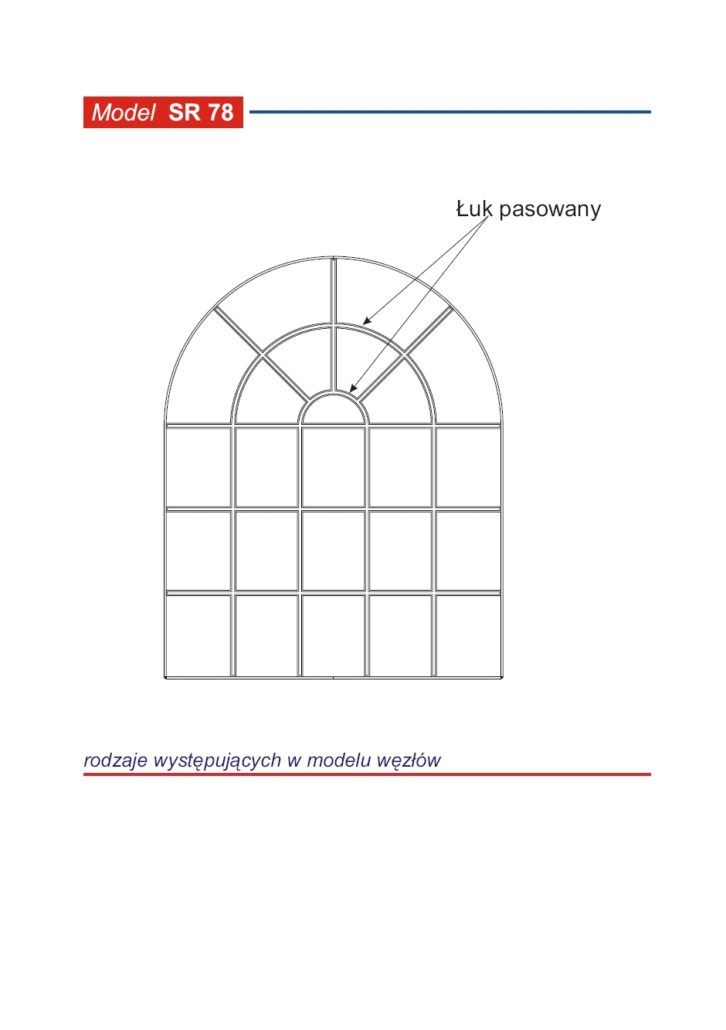

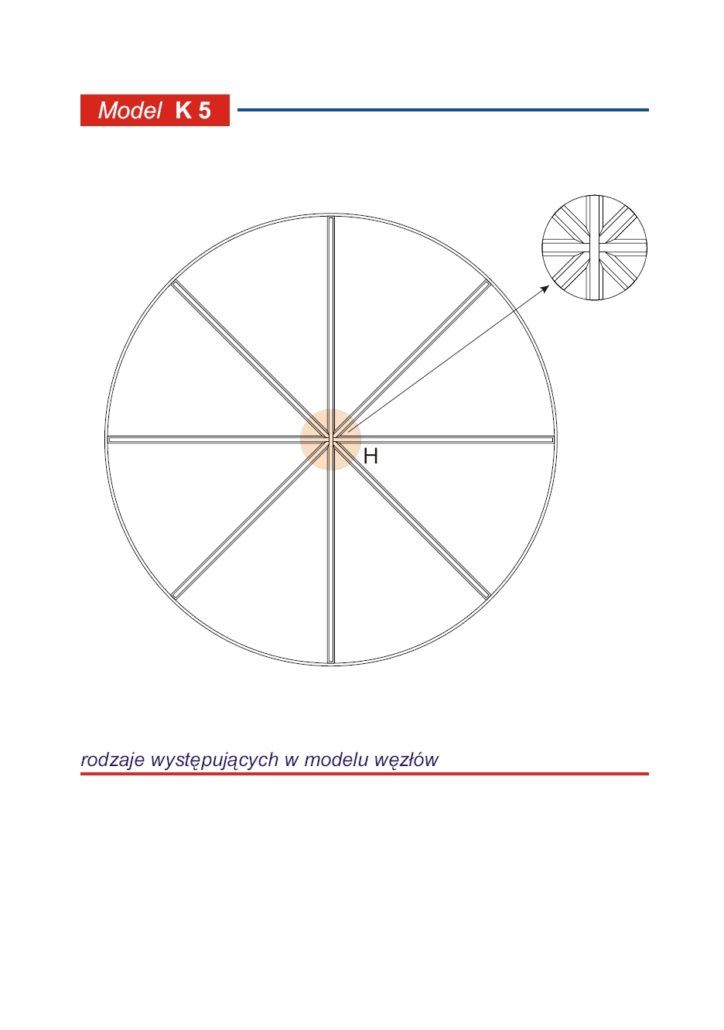

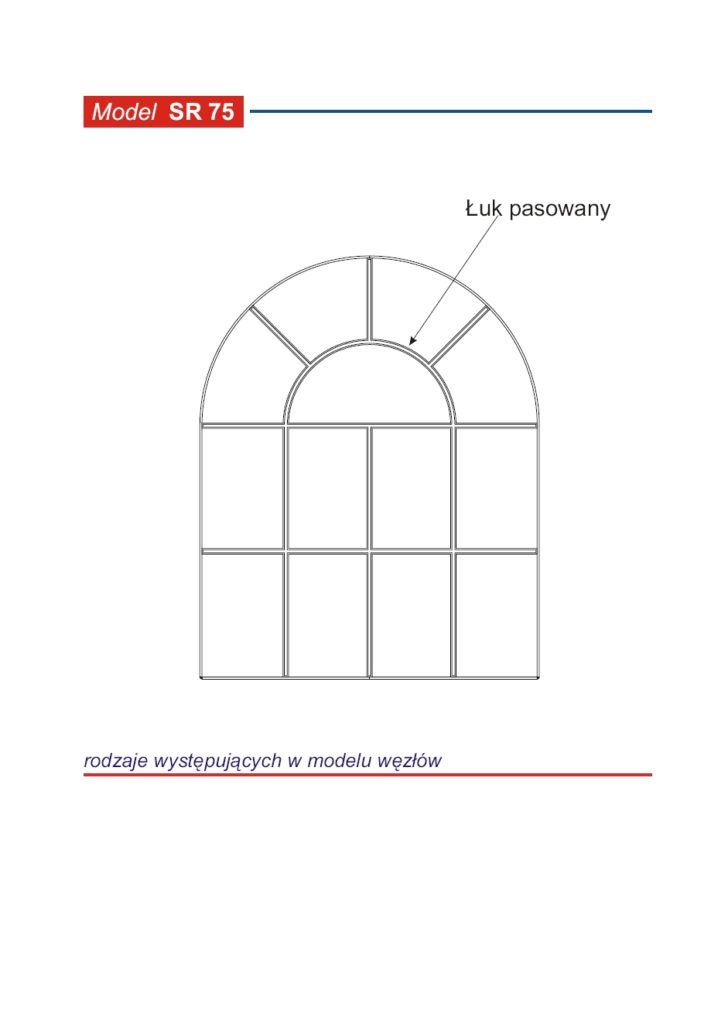

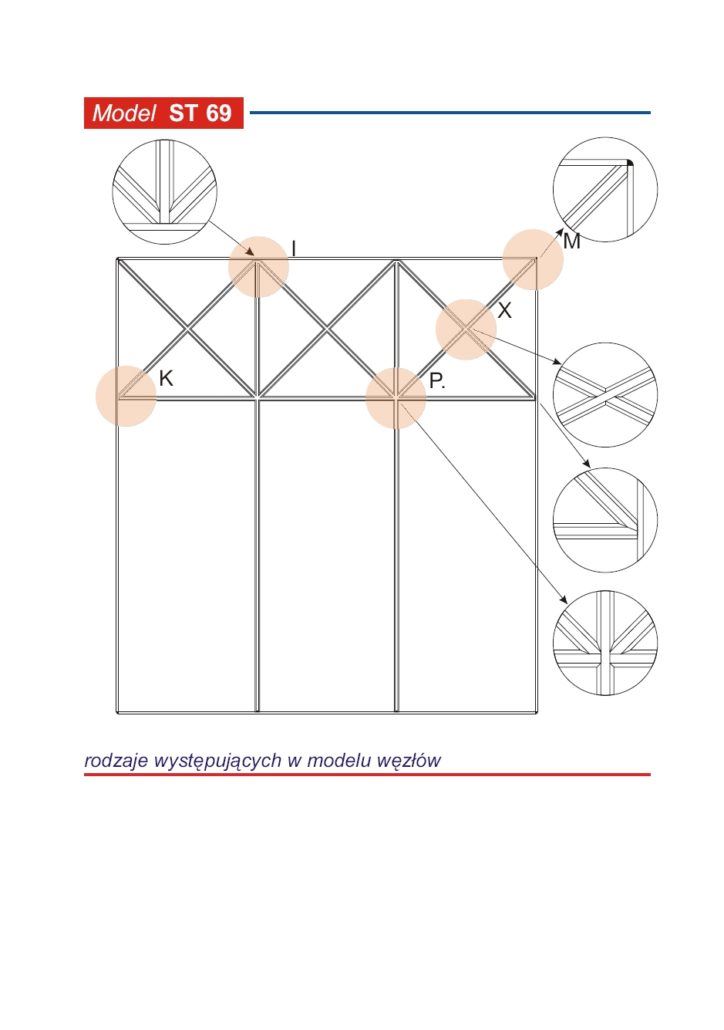

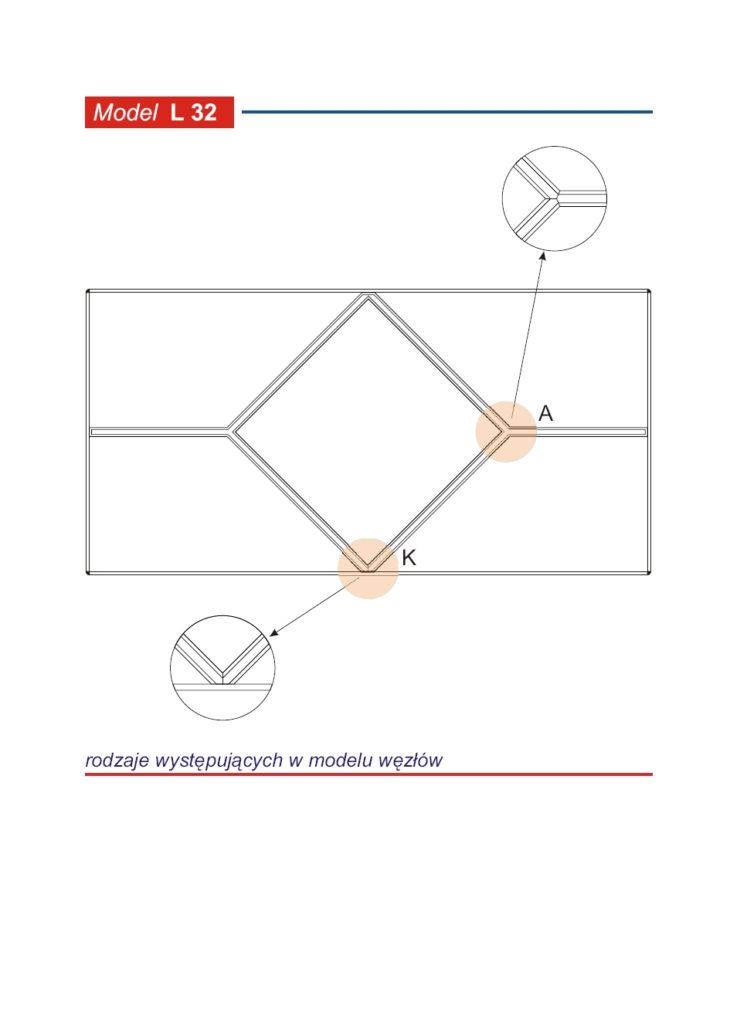

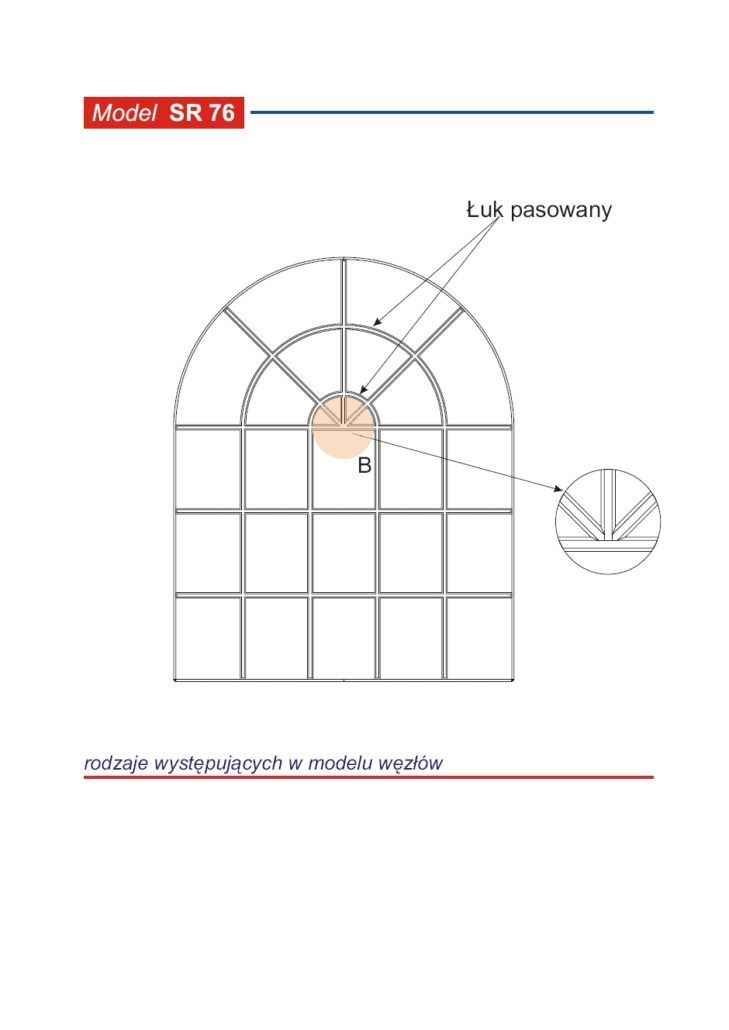

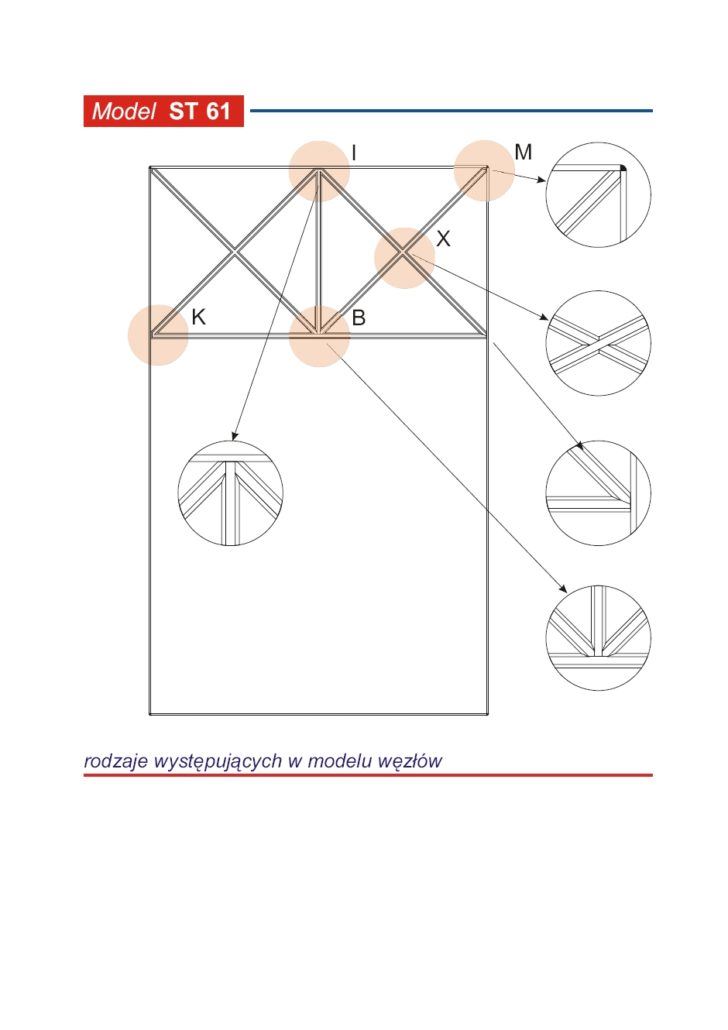

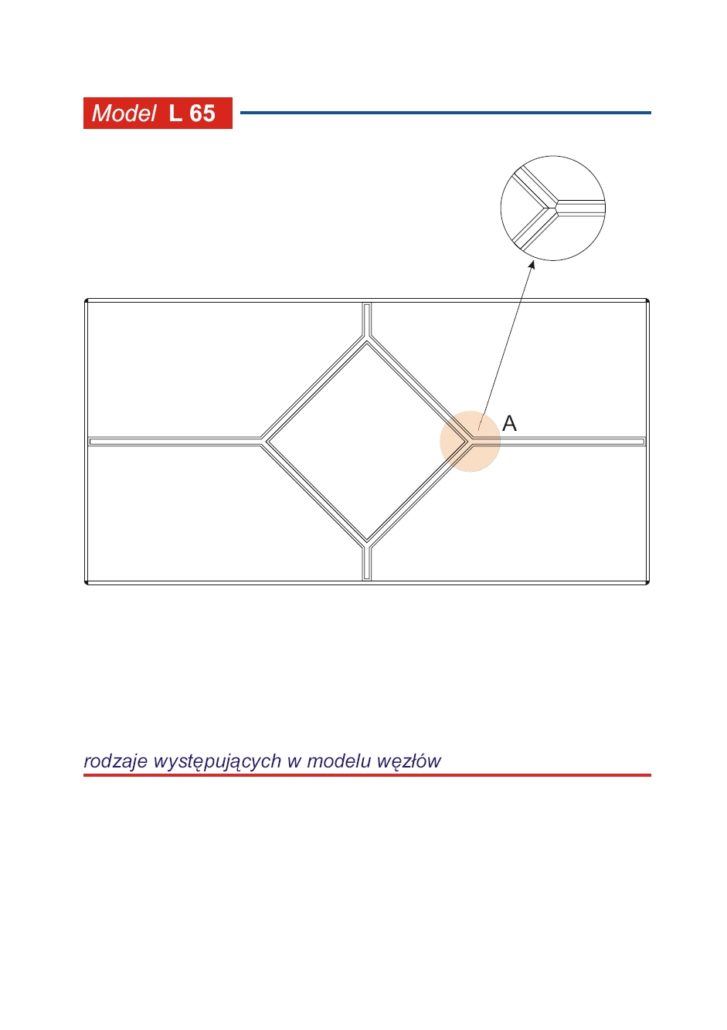

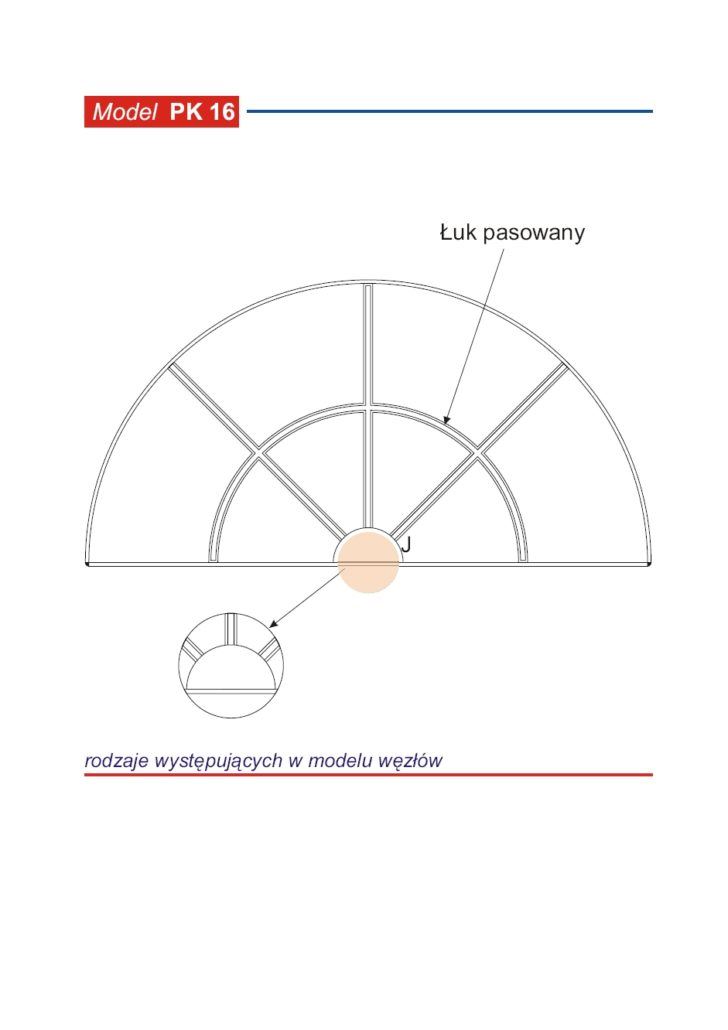

Examples of glazing bar grids
Benefits and applications
of glazed units with window divders
Benefits
- Aesthetic appearance with a classic style
- Choice of appropriate colour and pattern of window dividers
- Choice of width of window dividers
- Ability to bend and shape window dividers
Examples of applications
- Classic style windows and doors
- Glass facades of commercial buildings
- Glazing of window joinery elements used in renovations of historic and heritage buildings
Specifications
Window dividers are available in our standard offer in widths as listed below:
| Available widths | Colours |

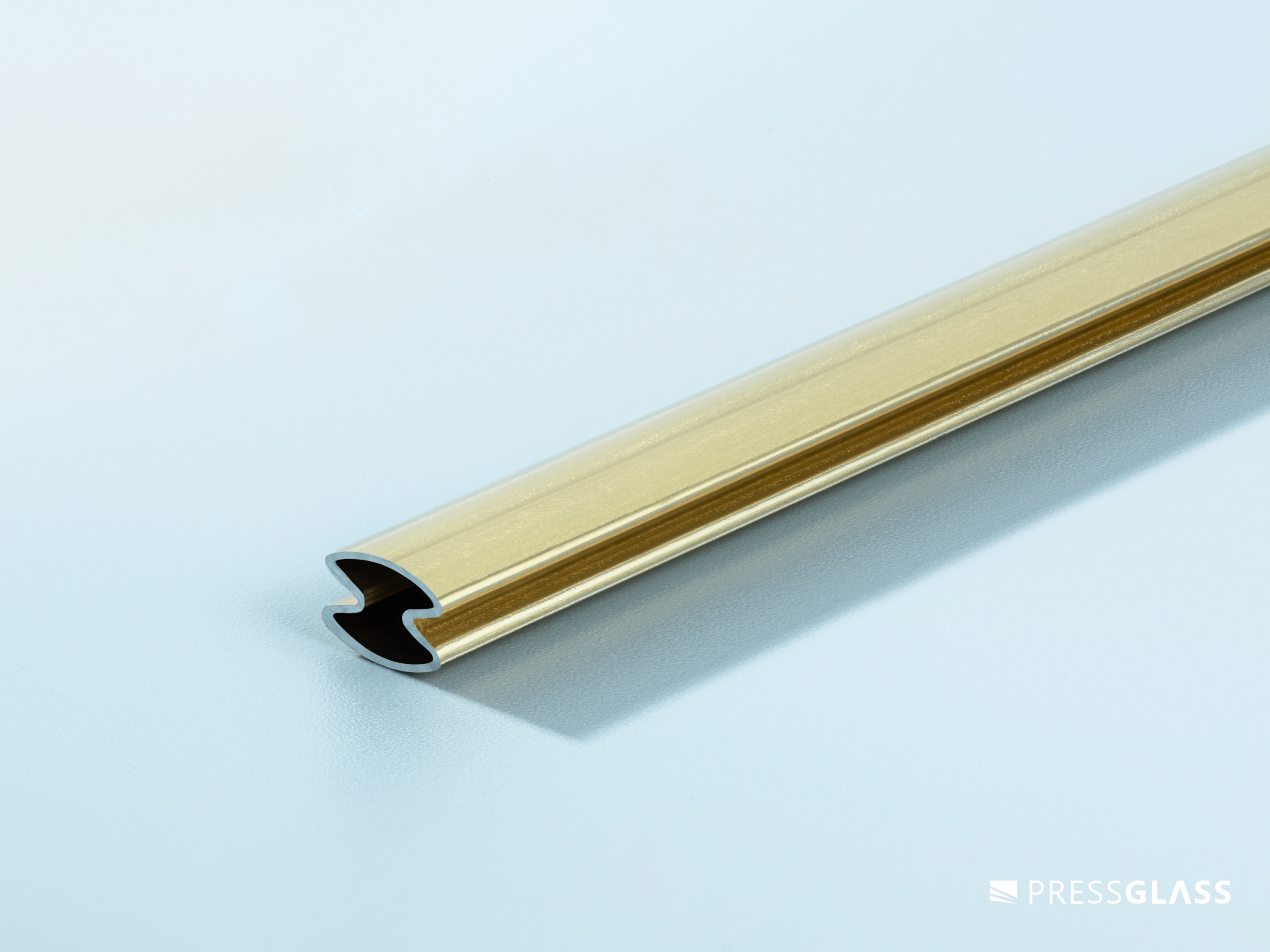

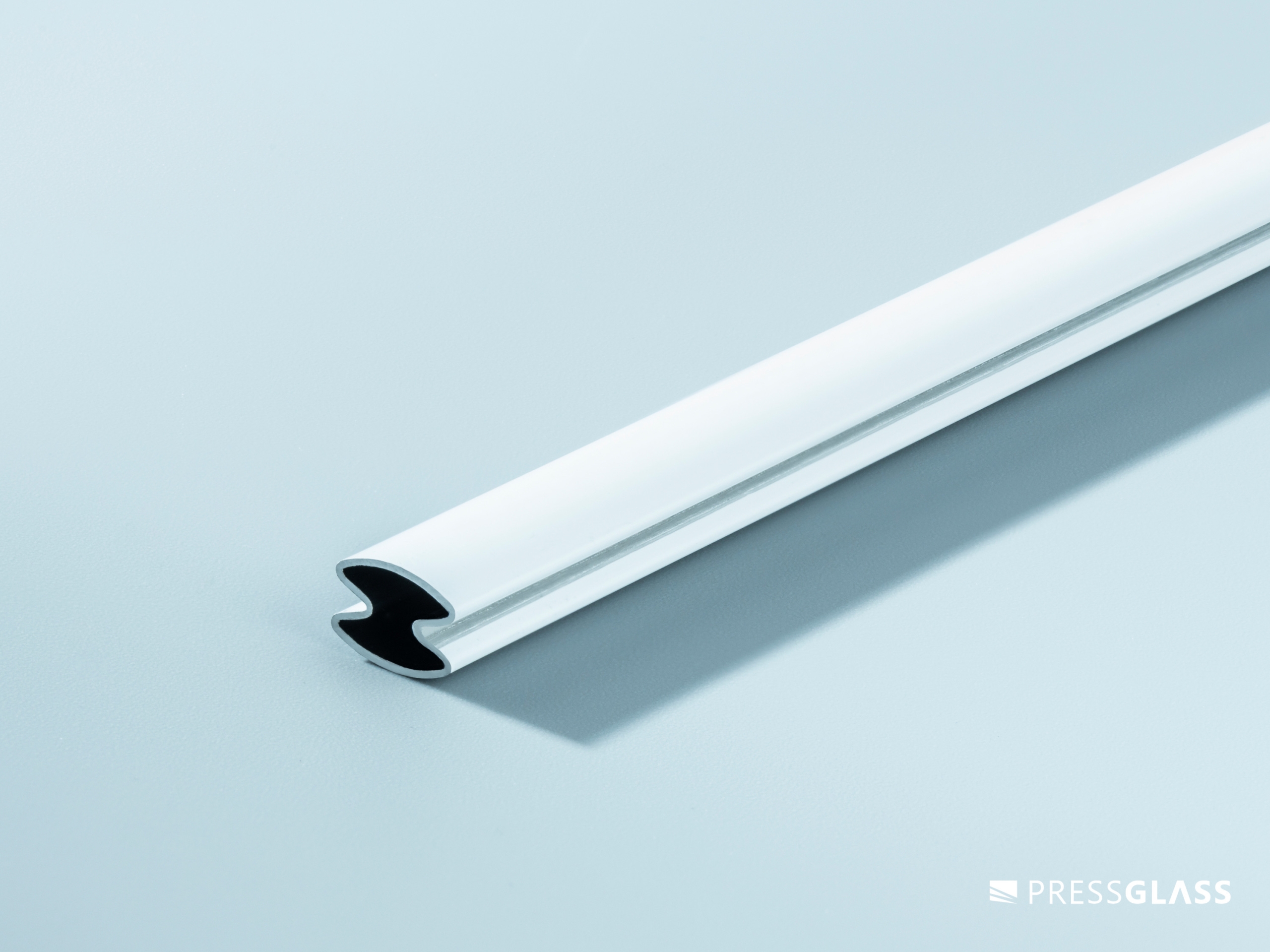

| 8 mm | White, Gold, Silver |
| 18, 26, 45 mm | White |
| Range of widths | Colour |
| 18, 26, 45 mm | wide range of [RAL] and coatings/laminating interlayers available in the market |
We do not manufacture curved elements from 45 mm wide dividers.
| Model | Condition |

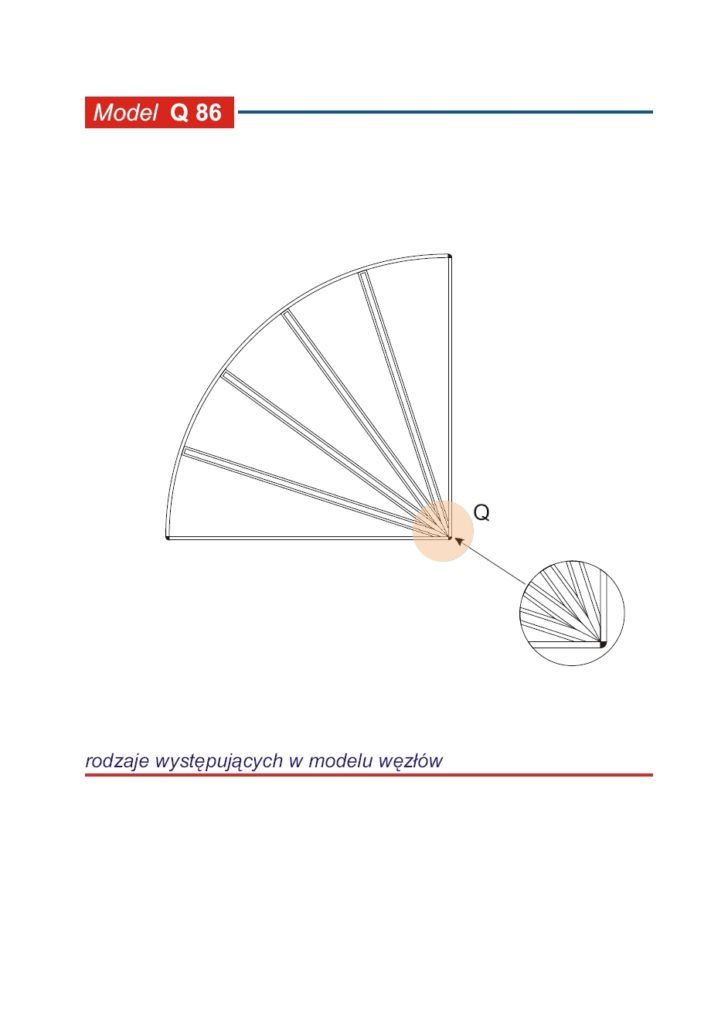

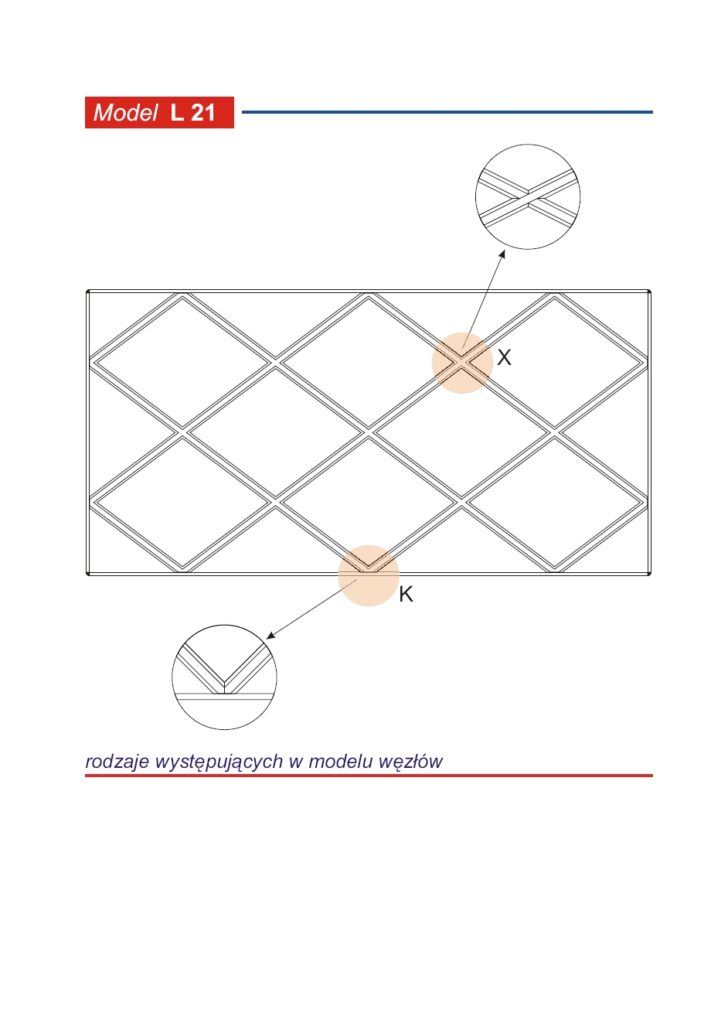

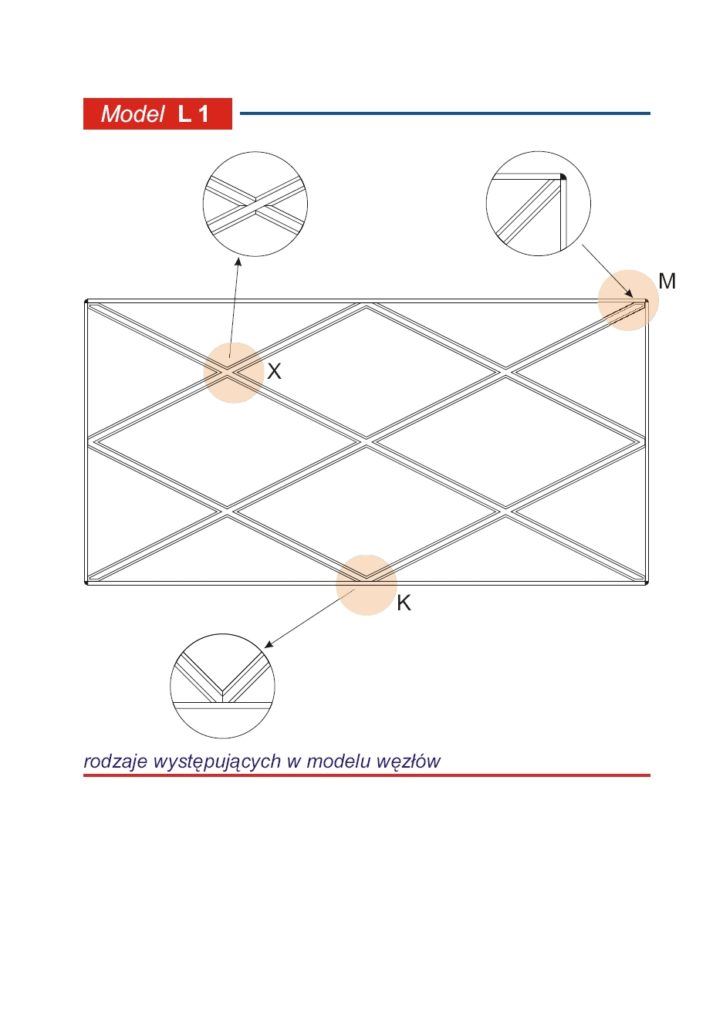

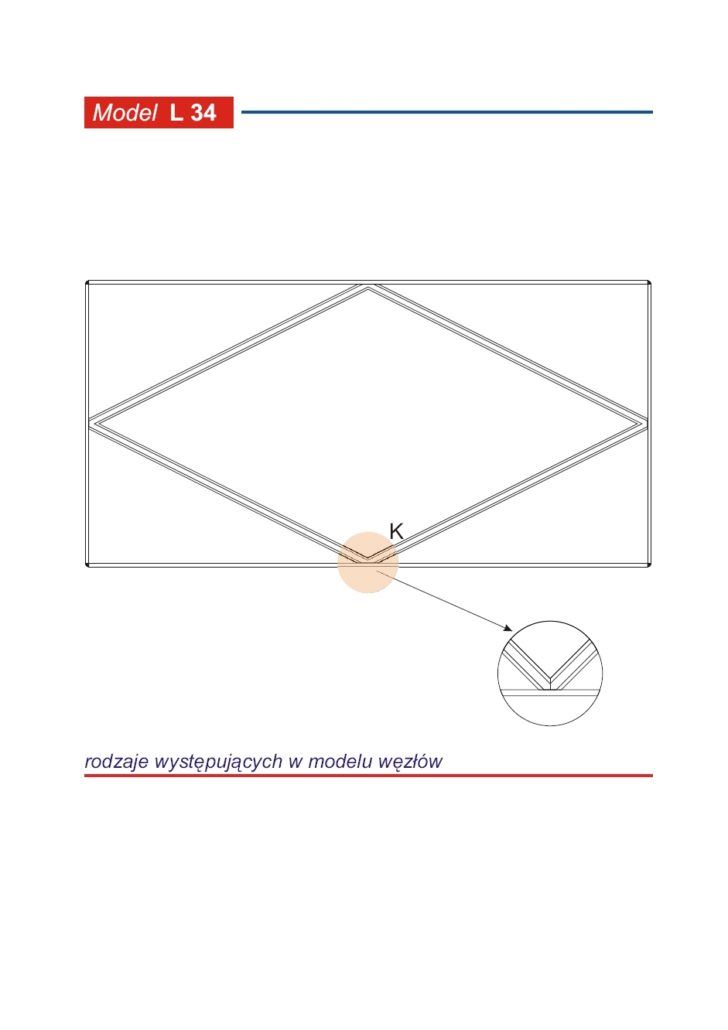

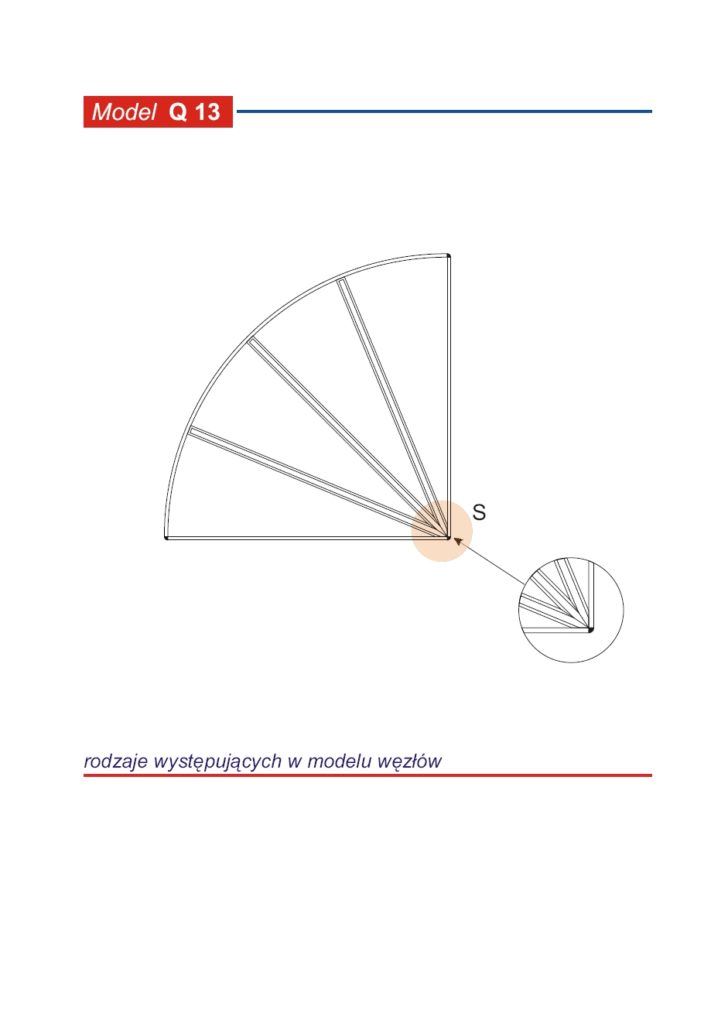

| L1, L 21, L34, Q13, Q 86 | minimum cutting angle – 23o |

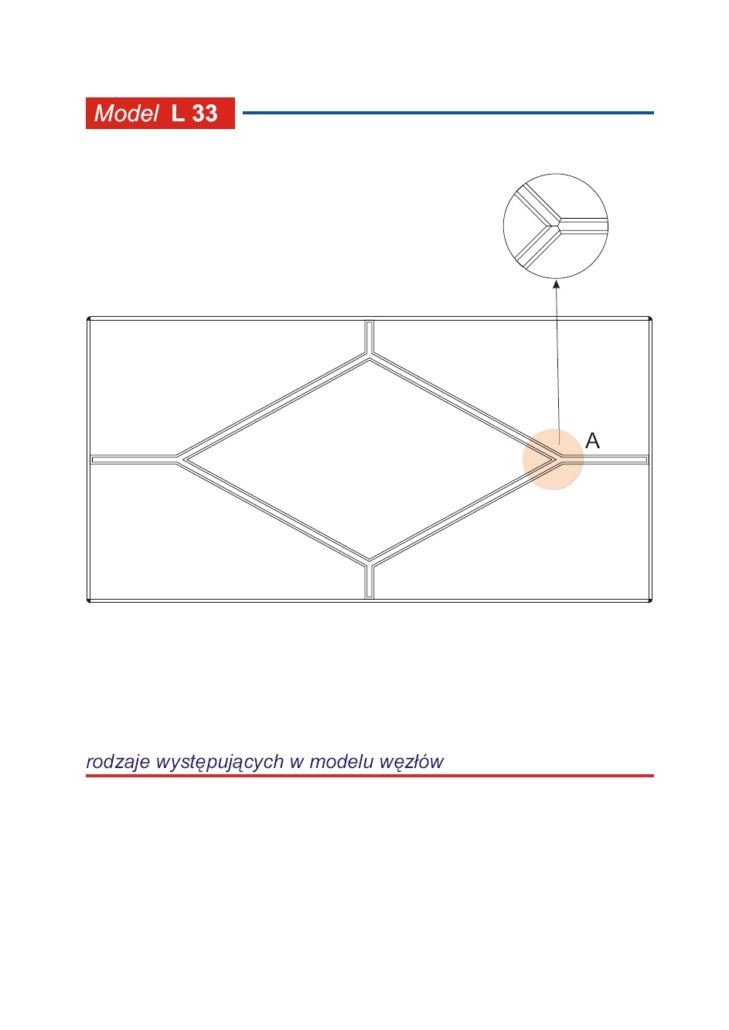

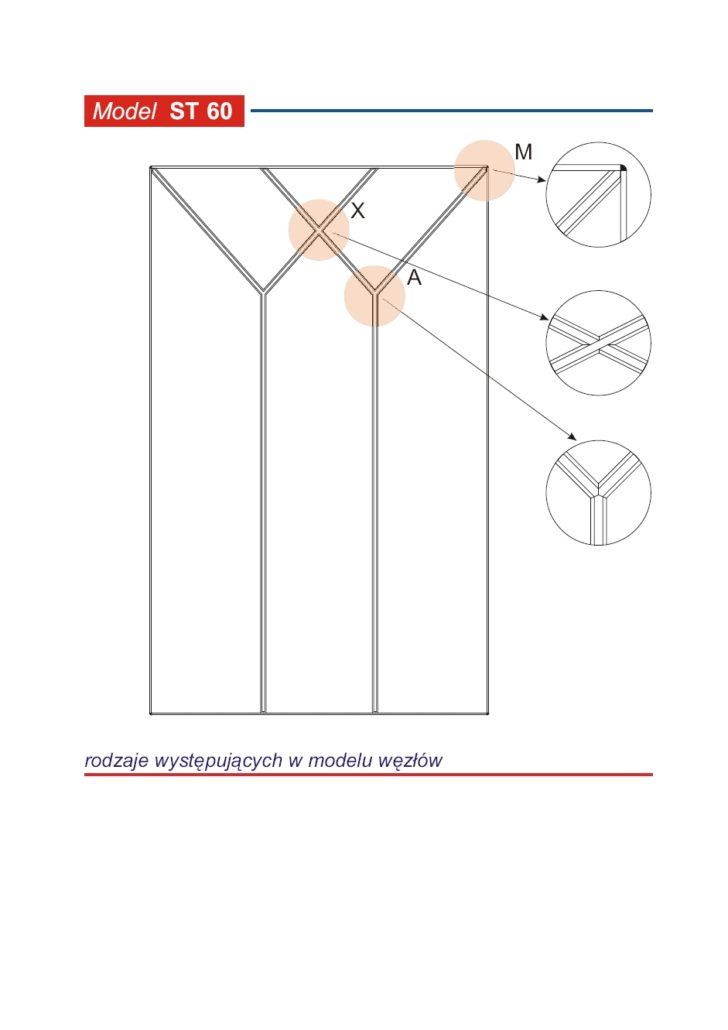

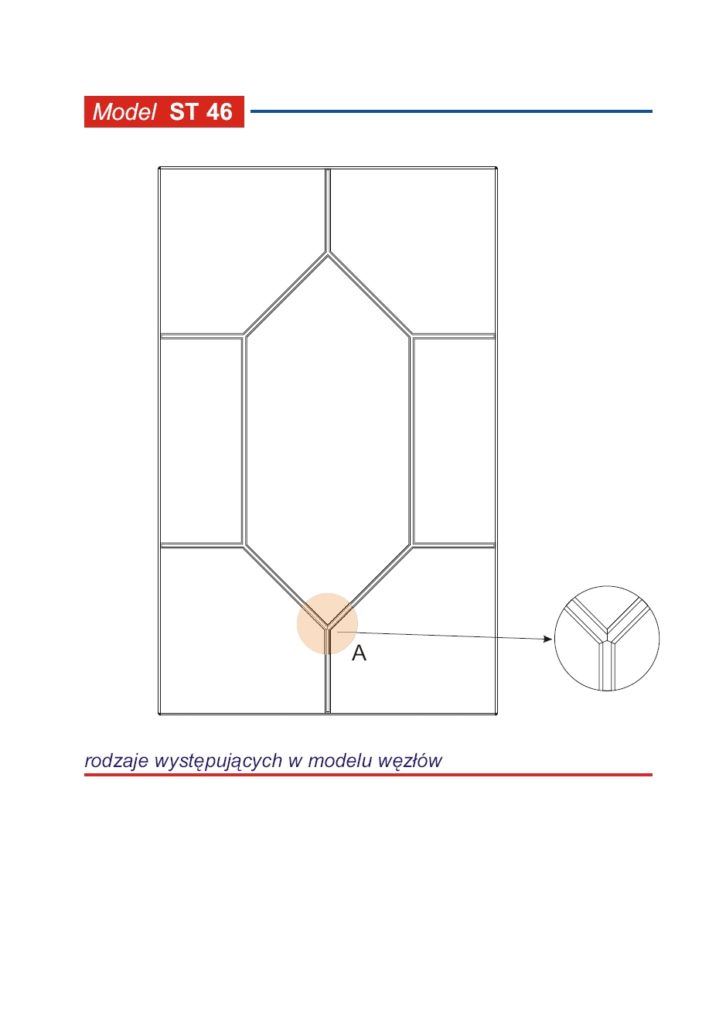

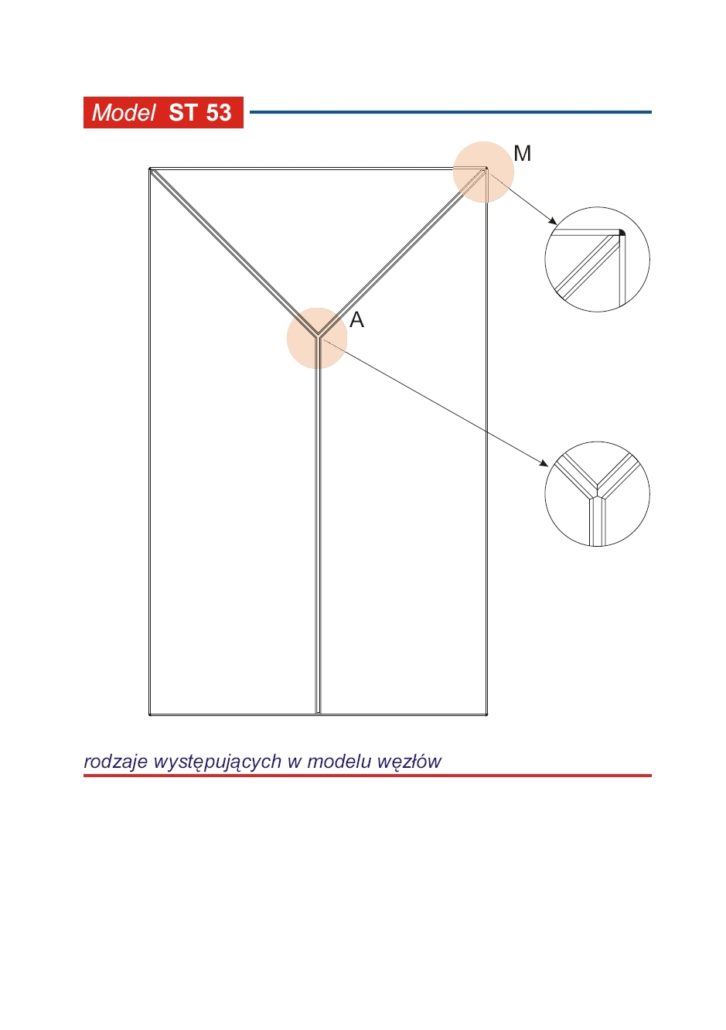

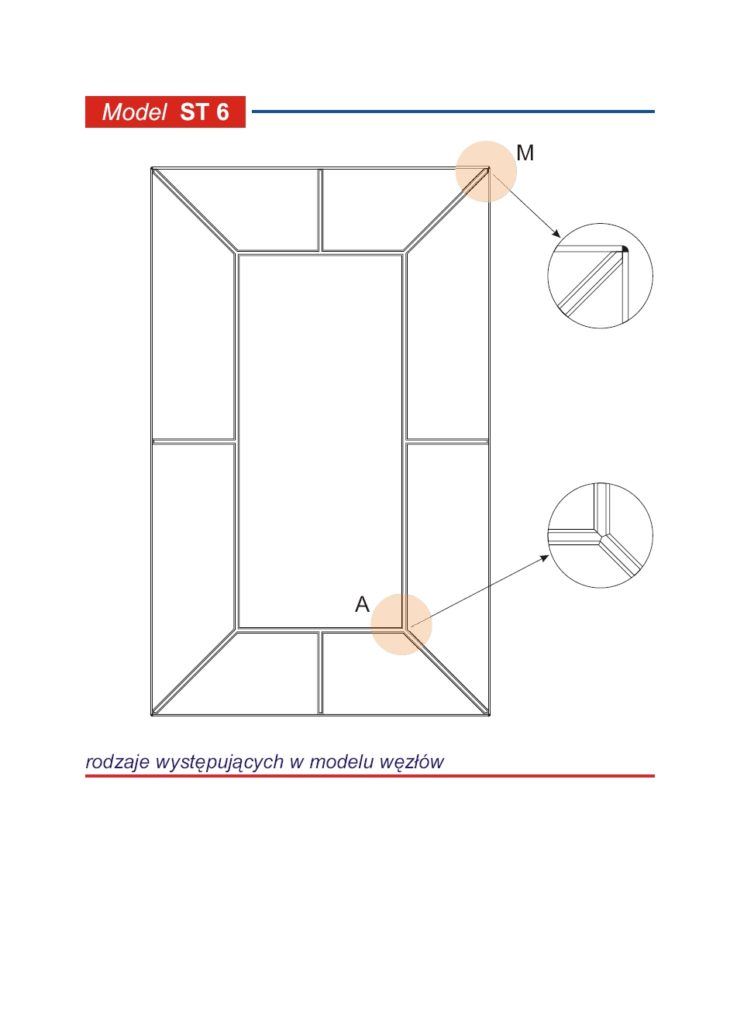

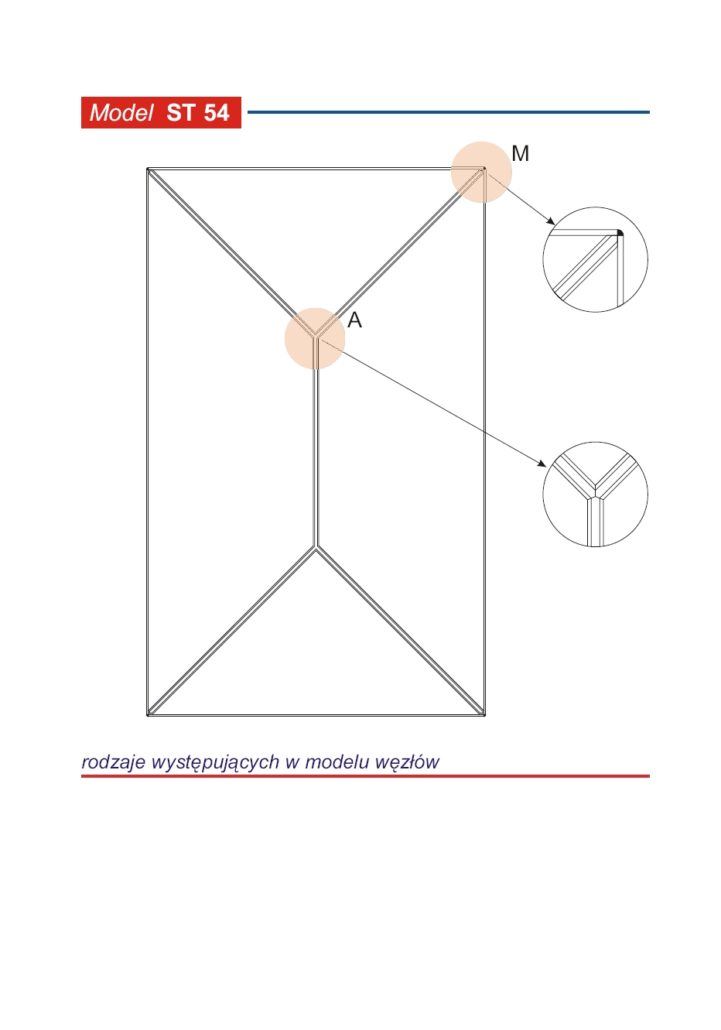

| L 33, ST 6, ST 46, ST 53, ST 54, ST 60 | node type “A” – angle 90o |

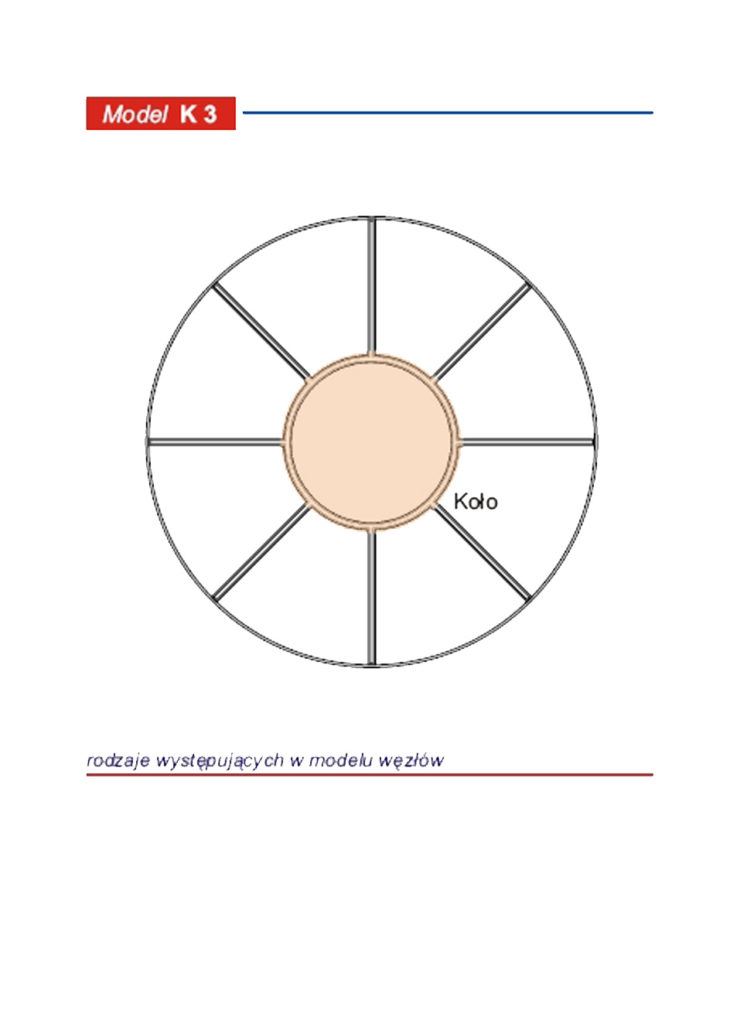

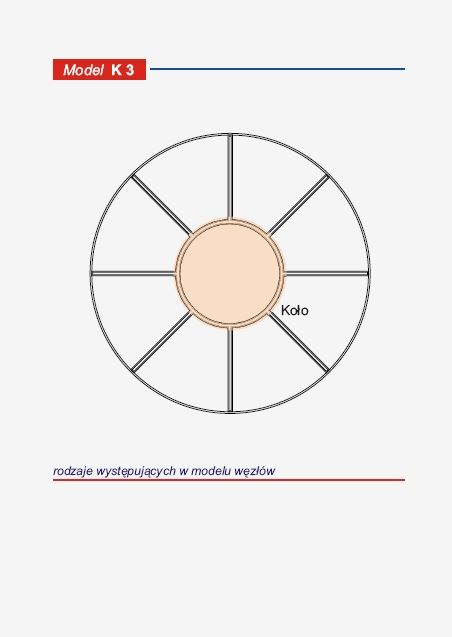

| K3 | no guarantee on connection |
